Testing the evap flow sensor (p1443 code)


Hey guys, I pulled up some info when I was working on my car last week and I figured I'd share it with you. The code I had was P1443.

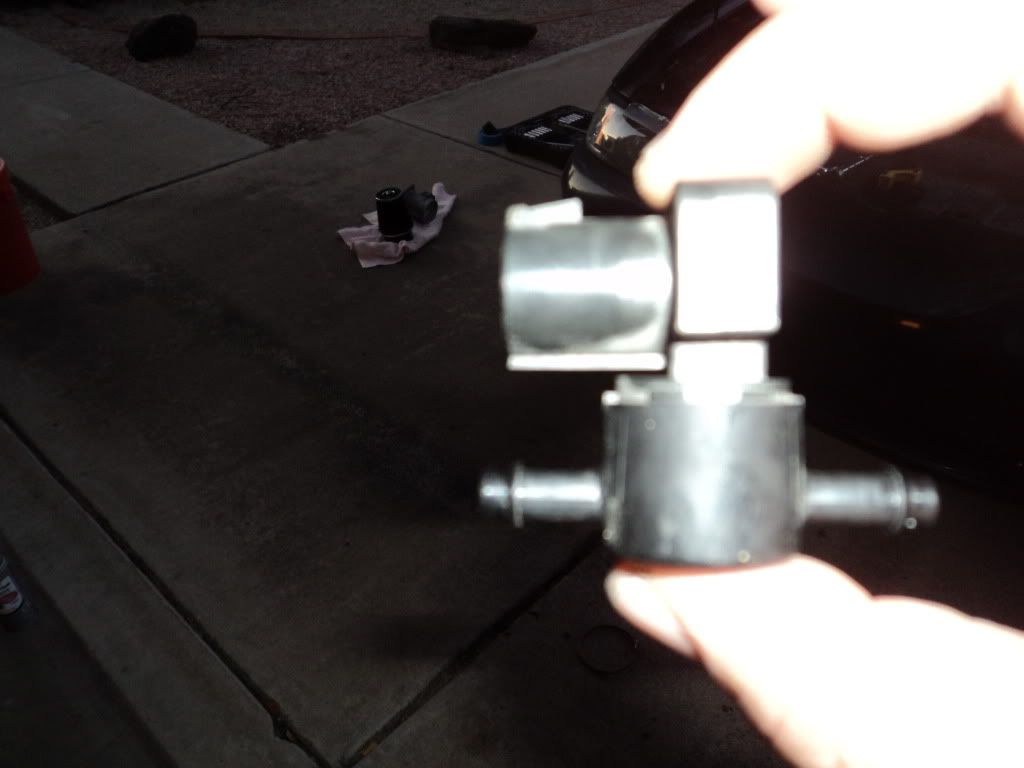

This is your EVAP flow sensor:


Here in the engine compartment, I circled it:

It is connected to the vacuum line from the back of the throttle body/plenum area to the sensor, then down to the charcoal canister.

Here are the pins on it, labeled A,B, and C:



Before you test the sensor, check for vacuum leaks in the system. Unplug the connector and pull the sensor out, then let it cool to room temp.
Pin A:Ground
Pin B: Power (reference voltage I think)
Pin C: Signal
Use a ohmmeter to measure the resistances between the following pins:

A to C: Should read more than 25.5 Ohms.

B to C: Should read between 25.65-28.35 Ohms.

A to B: Should read 130 Ohms or less.

If anyone finds something wrong in here just let me know and I'll fix it.
  Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old August 31st, 2012, 05:38 PM   #2
Regular

Rich2279's Avatar

'98 Mustang GT

Join Date: Aug 2011
Location: New Jersey
Posts: 206
Rich2279 will become famous soon enough
iTrader: 1 reviews
Default

What were your results of the resistance tests? Was this the problem?
__________________
'98 Mustang GT-- Money Pit
http://www.cardomain.com/ride/394916...ng-gt-coupe-2d

Last edited by Rich2279; August 31st, 2012 at 11:19 PM.
  Reply With Quote Quick reply to this message
Old August 31st, 2012, 07:26 PM   #3
Hardcore Enthusiast

xandraxal's Avatar

97 Mustang Cobra

Join Date: Mar 2012
Location: florida
Posts: 2,908
xandraxal is a splendid one to beholdxandraxal is a splendid one to beholdxandraxal is a splendid one to beholdxandraxal is a splendid one to beholdxandraxal is a splendid one to beholdxandraxal is a splendid one to beholdxandraxal is a splendid one to behold
iTrader: 0 reviews
Default

Yea, I had same code. Replaced the sensor, still have the code...lol
  Reply With Quote Quick reply to this message
Old August 31st, 2012, 08:26 PM   #4
Regular

Rich2279's Avatar

'98 Mustang GT

Join Date: Aug 2011
Location: New Jersey
Posts: 206
Rich2279 will become famous soon enough
iTrader: 1 reviews
Default

"It is connected to the vacuum line from the back of the throttle body/plenum area to the sensor, then down to the charcoal canister."

From the evap. sensor, the line should go down to the evap. flow valve and then to the charcoal canister.


Just tested my evap sensor with an Ohm meter

Pin A to C= 39.1 ohms
Pin B to C= "open"
Pin A to B= "open"

I also ohm tested the evap. flow valve and got 62.9 Ohms
__________________
'98 Mustang GT-- Money Pit
http://www.cardomain.com/ride/394916...ng-gt-coupe-2d
  Reply With Quote Quick reply to this message
Old August 31st, 2012, 10:56 PM   #5
Regular

small_block_chevy's Avatar

1996 gt

Join Date: Aug 2012
Posts: 56
small_block_chevy has a little shameless behaviour in the past
iTrader: 0 reviews
Default

yeah my 96 has one of those,but my fox lake p-51 intake doesnt have a nipple for it so not real sure what im gonna do about it yet
  Reply With Quote Quick reply to this message
Old September 5th, 2012, 09:02 PM   #6
Regular

Rich2279's Avatar

'98 Mustang GT

Join Date: Aug 2011
Location: New Jersey
Posts: 206
Rich2279 will become famous soon enough
iTrader: 1 reviews
Default

Just tested my old evap sensor with an Ohm meter

Pin A to C= 39.1 ohms
Pin B to C= "open"
Pin A to B= "open"

I also ohm tested the evap. flow valve and got 62.9 Ohms

Update: Received my new evap sensor from RockAuto Auto Parts
Ohm tested and received the following readings:

Pin A to C= 39.1 ohms
Pin B to C= 94.7 ohms
Pin A to B= 133.3 ohms
__________________
'98 Mustang GT-- Money Pit
http://www.cardomain.com/ride/394916...ng-gt-coupe-2d
  Reply With Quote Quick reply to this message
Old September 10th, 2012, 02:20 PM   #7
Regular

Vect0rmask's Avatar

1996 Mustang GT Convt.

Join Date: Apr 2010
Location: South Florida
Posts: 87
Vect0rmask is on a distinguished road
iTrader: 0 reviews
Send a message via Yahoo to Vect0rmask
Default

Did that solve your CEL? The info I typed up I pulled off AllData, When I tested my old one I think I had B-C was open.
  Reply With Quote Quick reply to this message
Old September 10th, 2012, 08:18 PM   #8
Regular

Rich2279's Avatar

'98 Mustang GT

Join Date: Aug 2011
Location: New Jersey
Posts: 206
Rich2279 will become famous soon enough
iTrader: 1 reviews
Default

Originally Posted by Vect0rmask View Post
Did that solve your CEL? The info I typed up I pulled off AllData, When I tested my old one I think I had B-C was open.
I replaced the sensor and cleared the code. Just for a good measure, I replaced the vacuum lines going to and from the sensor as well as the line for the vent solenoid. So far the engine light has not come back on. I will post again if it does.
__________________
'98 Mustang GT-- Money Pit
http://www.cardomain.com/ride/394916...ng-gt-coupe-2d
  Reply With Quote Quick reply to this message
