How To Install An Aftermarket Tach


Thanks To MustangMatt96GT for the awesome write up!


Originally Posted by MustangMatt96GT View Post
It is common knowledge that the stock Oil Pressure gauge and Water temp gauges are completley inaccurate. But who would have thought the Tachometer. It is completely in accurate. Some times i would bounce off the limiter at the track at 5500 RPM and next time around 5700 RPM. It made me concentrate, and not get as good of times, because i bounced off the limiter because of inaccurate gauges!

I bought a Autometer aftermarket 5 inch tach with Shift light. I also bought a UPR tach bracket. Both are very high quality. The instructions didnt come with it because i bought it used. But i have found a great set of instructions.
Here is the link. http://www.egauges.com/pdf/AutoMeter/859e.pdf

1. Unscrew the Gauge Cluster bezel and take the headlight knob off. (i just pull really hard and it comes off everytime)
2. Take the two torx screws out of the center dash portion above the CD player, and then take the CD player and Radio out.

3 Behind the Radio, there is a torx screw back in there holding the bezel on. Take the screw out and then pull on the bezel. It will come off.
4. Now take the two torx screws out on the left of the AC controls. Not take the tach, and its bracket, and screw the screws back in. Now reassemble the center dash, and plug the radio and CD players back in.

(If mounting the tach elsewhere disregard steps 2-4)

Now your dash should look something like this.


Next step is to wire it up.

Take the actual gauge cluster out. There are 4 torx screws holding it in. You will have to unplug two plugs from it too.

5. There is a black and a white plug.


Take the white plug. And find the Tan and yellow wire, in pin 8. That is the tach signal wire. That is what the tach wire will be connected to. In my case, it was a green wire. I used scotch locks to tap into the wires.





Now all you need is a power source for the tach itself, a ground, and a power source for the light. You dont want the light on all the time, so you have to tap into a wire that will only give power to that when the lights are on. This wire can be found, along with the power wire for the tach, and the ground, from the rear defroster switch.



In my picture there are already wires tapped into it, because i have my other gauges running off of the same wires. The Rear Defroster Switch is protected by a fuse.

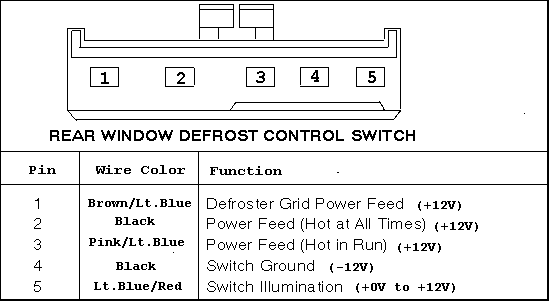

This is a picture of the wiring of the Rear Defroster Switch


The Pink/Light blue (Pin 3) wire is the power wire to the tach. In this case, that was my red wire. So I scotch locked it in place there.

The Black wire in (Pin 4) is the ground. You can scotch lock to that, but i just found a new ground under the dash.

The Light blue/Red switch (Pin 5), is the power for the Lighting, so i connected my white wire to that.


Now reconnect the wires to the back of the gauge cluster, and reinstall it. all the wires should be hidden behind the cluster now. So put the bezel back on.



Turn on the lights, and see if the power to the light is working.


If that checks out, put the car on the Start Position. If it goes to 0 and the light lights up then everything is checking out.

Next fire up the car, and see if the tach works! If it does, set the shift points and have fun!

Completed Pictures!



Completed Movie! Make sure it worked! Compare to my Stock tach.



How my car idles!



A 96 GT with stock computer tune Bounces off the limiter at 5900 RPM
And the stock tach was completely inaccurate.



Good luck!

and Ujslost thanks for the help with the wiring diagrams!

Any questions just let me know!
__________________
1988 LX Coupe 2.5L, GT35R, 44mm WG, 32psi, C16.
  Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old March 8th, 2008, 04:11 AM   #2
Newbie


Join Date: Mar 2008
Posts: 16
thaited is on a distinguished road
iTrader: 0 reviews
Default

Bounce House


Kinda reminds me of that time I put together one of those inflatable bounce house things, but that didn't go so well. Well, no not actually I just though that was funny.

Nice and thank you for the great writeup.
  Reply With Quote Quick reply to this message
Old May 31st, 2010, 10:41 PM   #3
Regular

cobrastang_07's Avatar

1999 Mustang GT
12.4@ 109

Join Date: May 2010
Posts: 255
cobrastang_07 is on a distinguished road
iTrader: 0 reviews
Default

can this be used to install a tach in 1999 mustang GT?
  Reply With Quote Quick reply to this message
Old July 9th, 2011, 12:02 AM   #4
Regular

2002 Mustang GT

Join Date: Jan 2011
Location: Lumberton N.C.
Posts: 88
killapits is on a distinguished road
iTrader: 1 reviews
Default

and what about 2002 is it the same
  Reply With Quote Quick reply to this message
Old March 9th, 2012, 12:53 AM   #5
Look Ma! My First Post!

1986 ford mustang gt

Join Date: Nov 2011
Location: ct
Posts: 1
fordgt86 is on a distinguished road
iTrader: 0 reviews
Default

will this set up be the same for a 86 gt
  Reply With Quote Quick reply to this message
Old August 1st, 2012, 09:04 PM   #6
Regular

2002 Mustang 3.8

Join Date: Jul 2012
Posts: 59
Blog Entries: 1
dws1006 is on a distinguished road
iTrader: 0 reviews
Default

Will this work on a 2002 3.8 mustang.
