Long overdue, my build thread

Well this is basically the summation of the last 2 years. I'll post a picture of the subject for starters fresh from the paint shop with mach 1 sails and cobra skirts. Car has a procharger P1sc, bbk 300 pump/KB BAP, frpp 47# injectors, procharger open bullet valve, SCT ba5000 comp cam 262's, stock valve springs. Running 9 psi with a 11.3 afr it was pumping out 415rwhp/397rwtq. Ran great with 4.10 gears, frpp gt500 traclock, Moser 31 spline axles through mickey thompson ET streets.



The bullitts rubber was worn out so I sold them for $300 and picked up these with brand new rubber for $500.





5rand0n7 and GBPackerFan like this.
Snorky is offline
Sponsored Links
Advertisement

post #2 of 101 Old March 17th, 2017, 04:16 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews

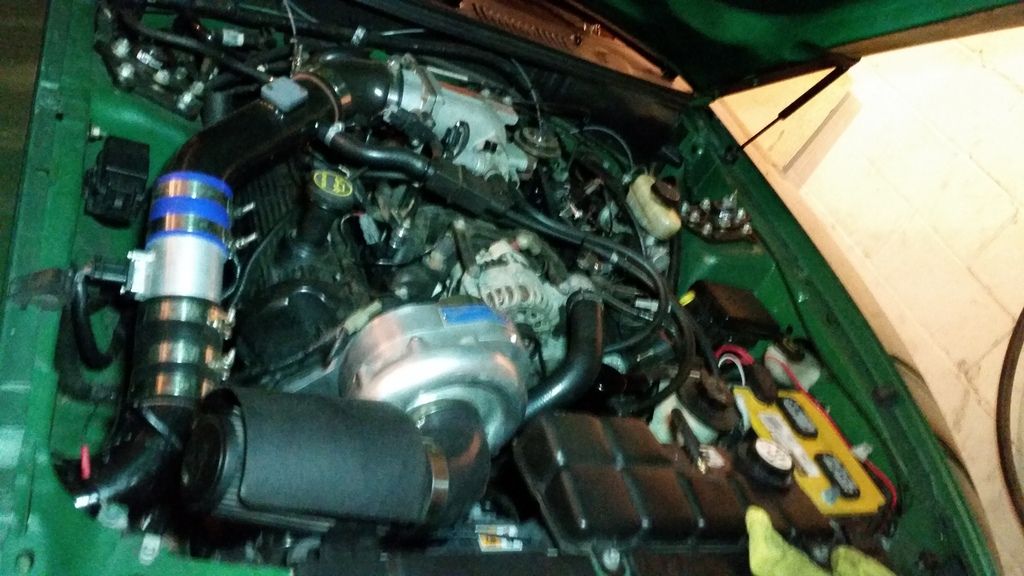

Going to post some picks of the sketchy procharger setup.

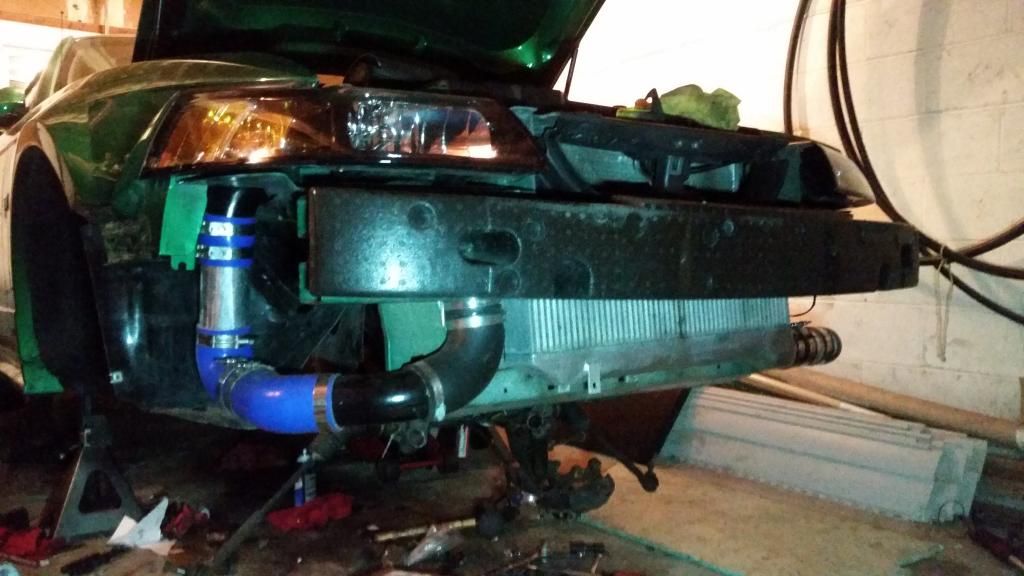

3 core intercooler with mismatched couplings and pipe... most I painted the same color.

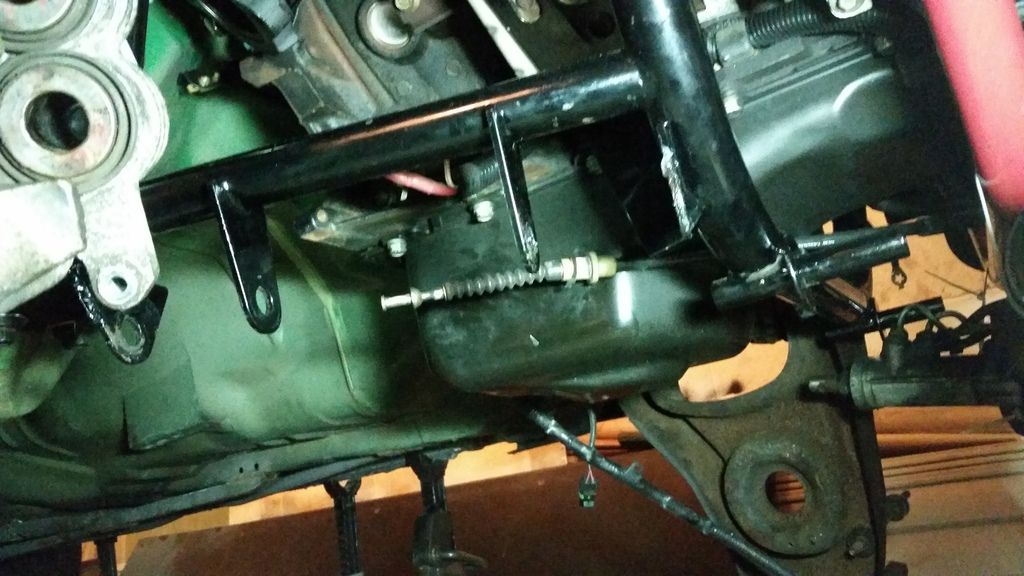

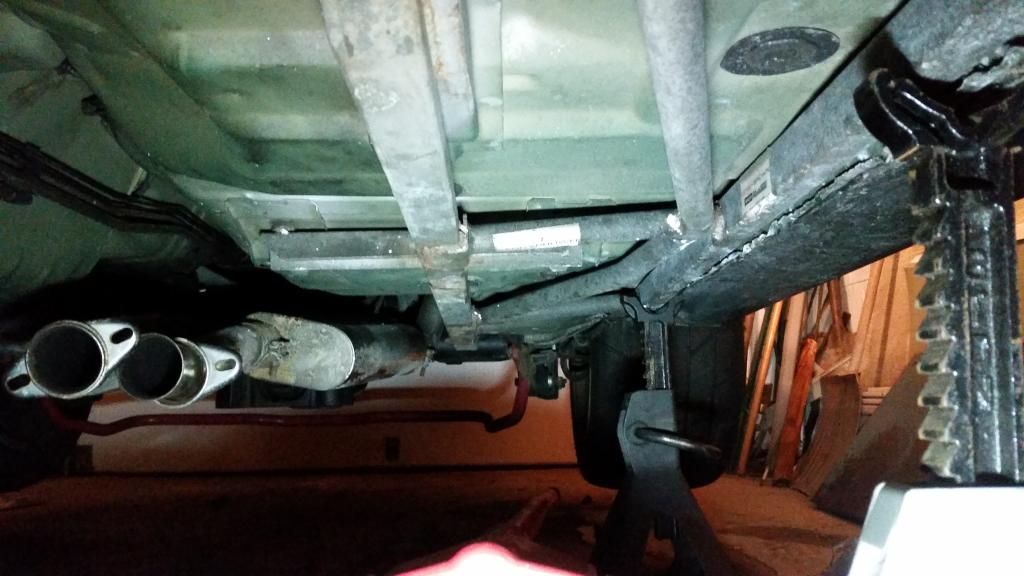

Here are the subframes



UPR mild steel K with stock A arms



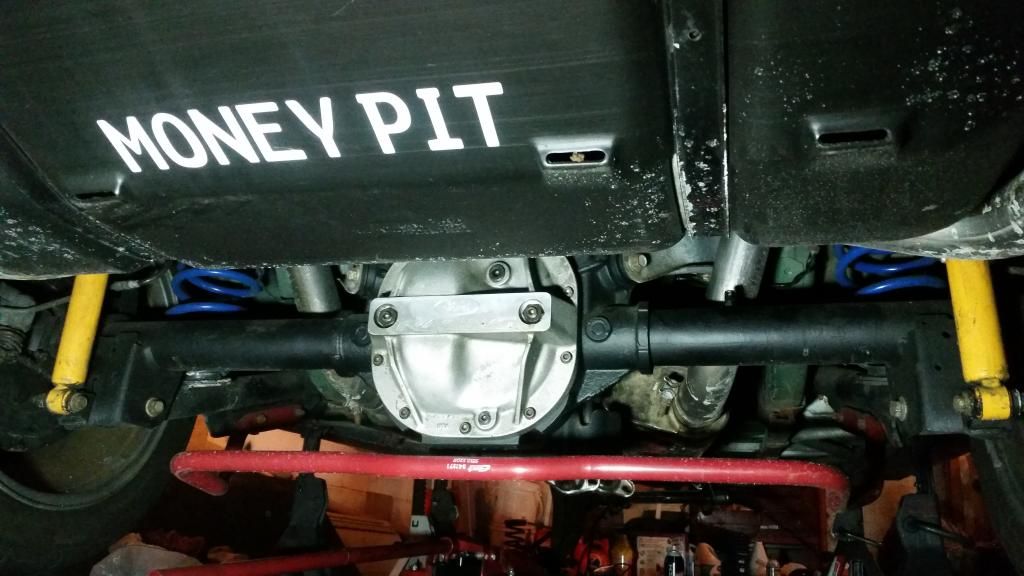

The axle looking good...

Snorky is offline
post #3 of 101 Old March 17th, 2017, 04:37 PM
I like boobs!!!

NickPohlAandP's Avatar

Join Date: May 2011
Location: Lake Charles, LA
Posts: 3,869

iTrader: 2 reviews
I think the gas tank cover is my favorite part!
mellis, 5rand0n7 and GBPackerFan like this.


'00 V6 being gutted for real fun! Fixing where I went wrong with my last 2000
'04 V6 for my stepson
'27 Ford T Sedan, sold
'12 GT, Roush Exh, Steeda 101mm CAI, SCT Tune, MGW, 388 WHP 375 WTQ, Sold
'00 GT Vert, Built, Sold
NickPohlAandP is offline
Sponsored Links
Advertisement

post #4 of 101 Old March 17th, 2017, 05:16 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
Quote:
Originally Posted by NickPohlAandP View Post
I think the gas tank cover is my favorite part!
Lol, yeah, it's a good time considering you can read it when following me down the road. I am uploading hundreds of pics to photobucket for the build. Lol. Going to be a little while. Then I can get down to business with this thing.
Snorky is offline
post #5 of 101 Old March 17th, 2017, 05:52 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
Some background on this.. this project is something I wanted to do for a long time, it was initiated as a therapy project (lol, perfect reason) following a failed engagement. So. In this build I am aware of doing certain things in a cheaper or more economic way, but I have a lot of time constraints from my career to work on my car. Sucks... oh well. Last cool pic with the blower setup.

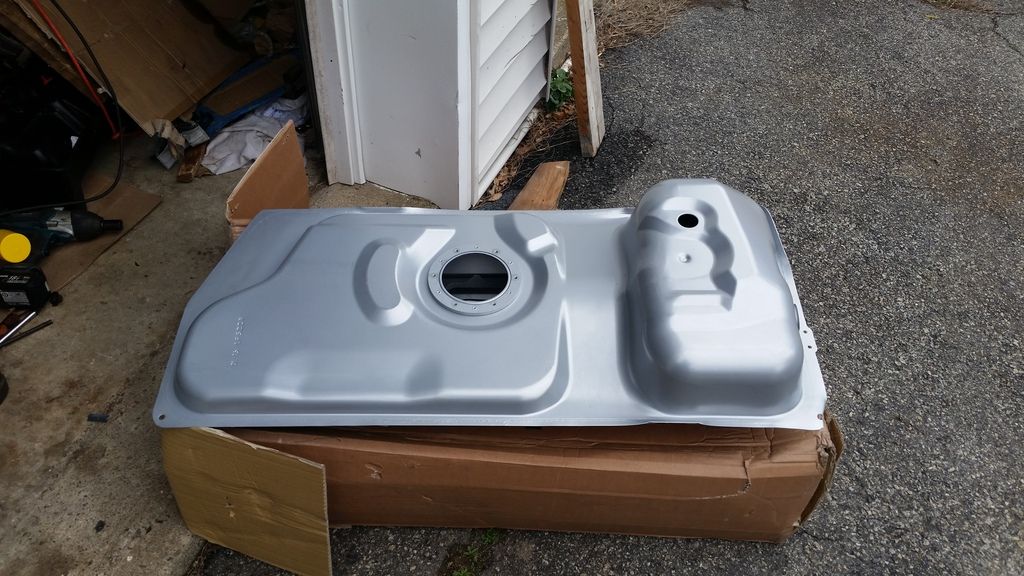

It all started with all of these boxes showing up. And what came inside???!!









Snorky is offline
post #6 of 101 Old March 17th, 2017, 05:57 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
that intercooler is a much needed upgrade.

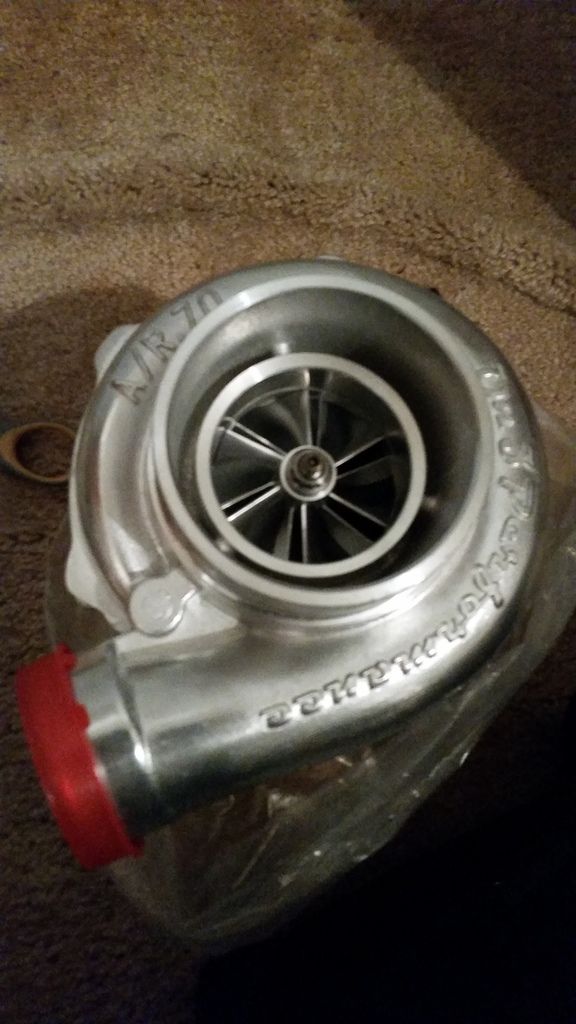

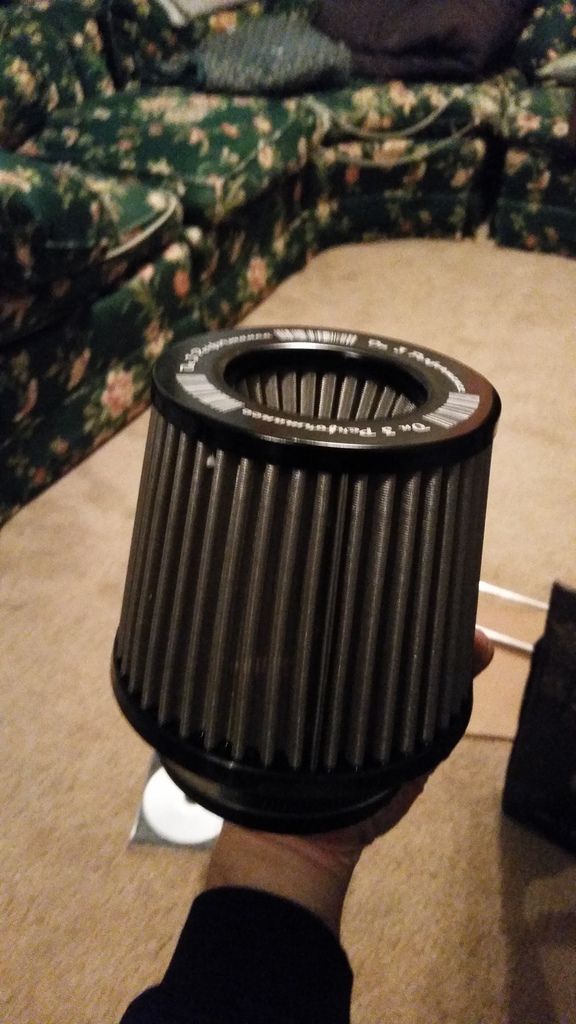

On3 2nd Gen FF turbo kit with their 67mm dual ceramic ball bearing turbo with the billet wheel upgrade.. and a stainless airfilter because fuck it. UPR tubular A arm kit to go with the tubular K already in the car.
5rand0n7 likes this.
Snorky is offline
post #7 of 101 Old March 17th, 2017, 06:19 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
On3 baffled cobra tank



Ohh look at that

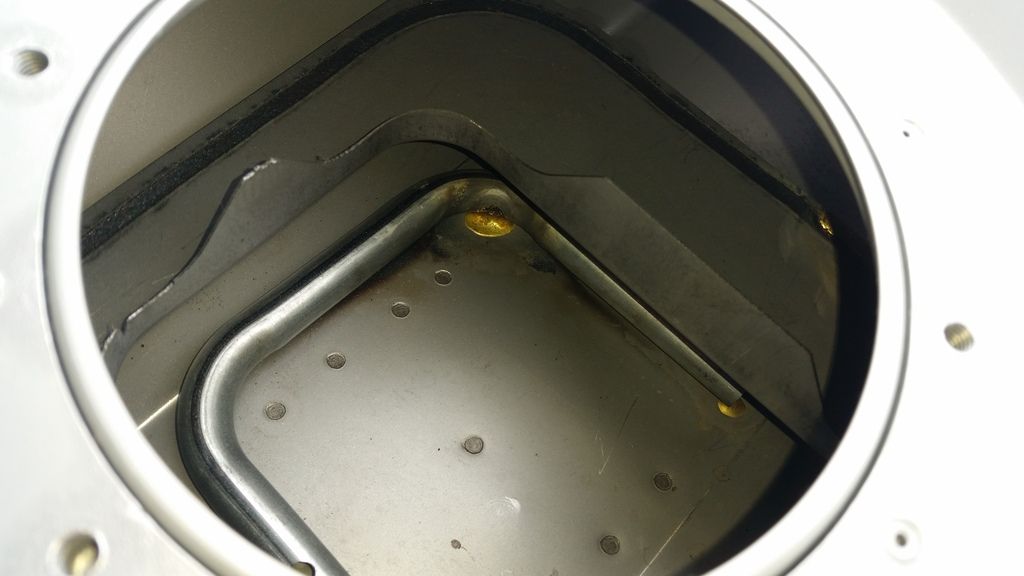

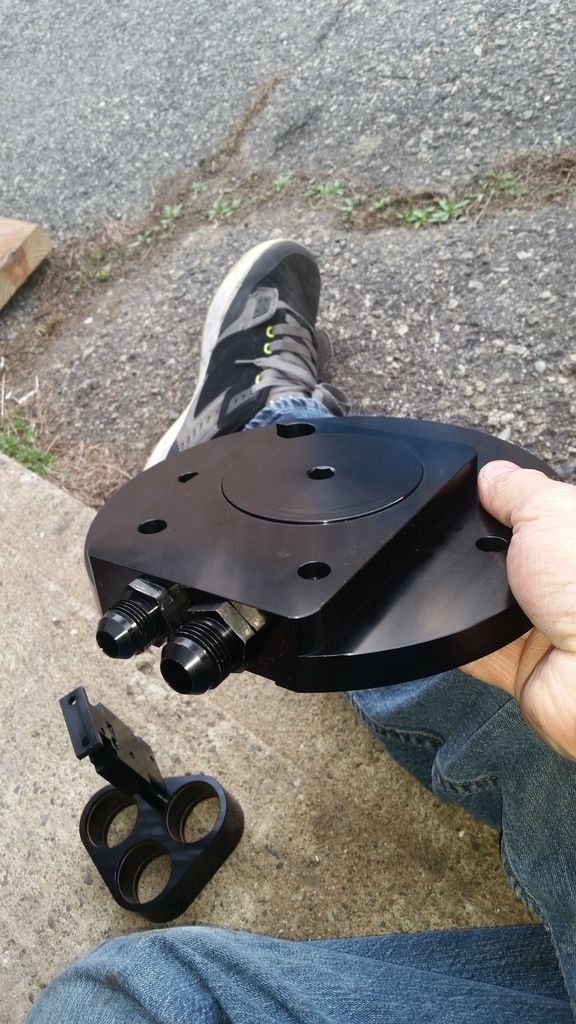

Fuel hat, can hold 3 pumps. Very nice piece, black anodized aluminum.



Wiring kit and two 340 pumps

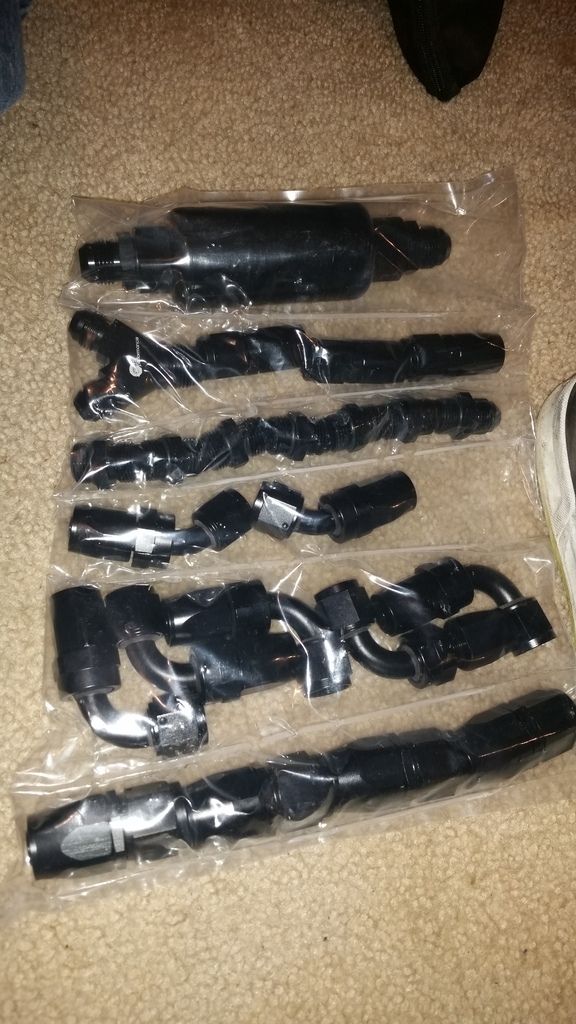

All of the 10an and 8 an fuel fittings plus the steel braided lines.

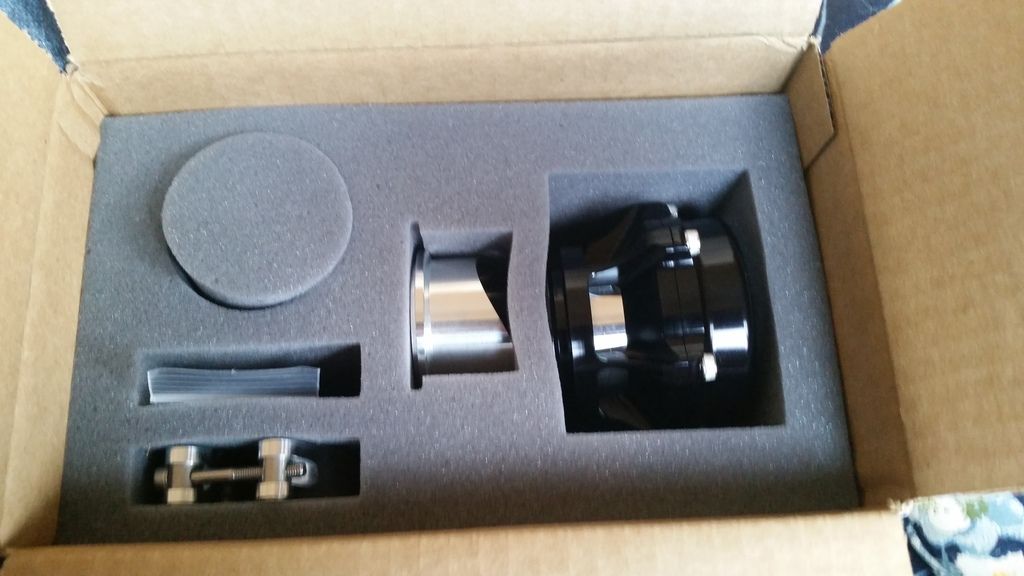

Can't forget the Tial 50mm bov and 44mm waste gate.



Overall I am very impressed with on3's fuel system and their turbo system. The only things I knew to avoid were the WG, BOV and v-bands.. everything is very well machined and welded. Working in manufacturing I have an eye for it. ;-)

Doing this writeup in tri-cities tennessee airport. I will continue with more when I get to Atlanta on my layover.
Snorky is offline
post #8 of 101 Old March 17th, 2017, 06:33 PM
Cletus Emmett Wheelwelker


MG2V's Avatar

Join Date: May 2013
Location: AČ, Michigan
Posts: 2,566

Garage
iTrader: 3 reviews
Nice build. I love that Saleen extreme hood.
MG2V is offline
post #9 of 101 Old March 17th, 2017, 08:48 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
Quote:
Originally Posted by MG2V View Post
Nice build. I love that Saleen extreme hood.
Thanks man! Was well worth it. One of my favorite features on the car.

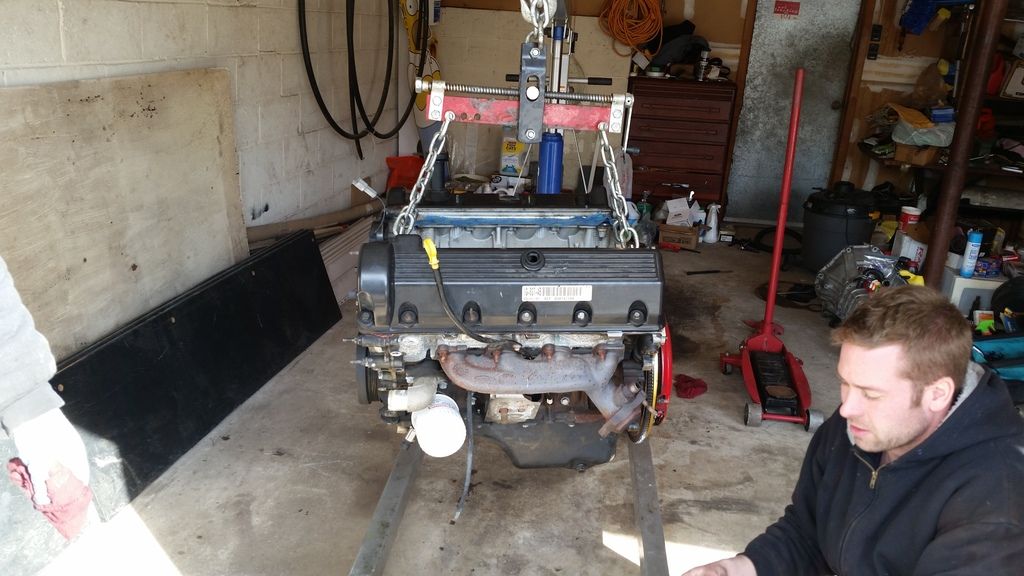

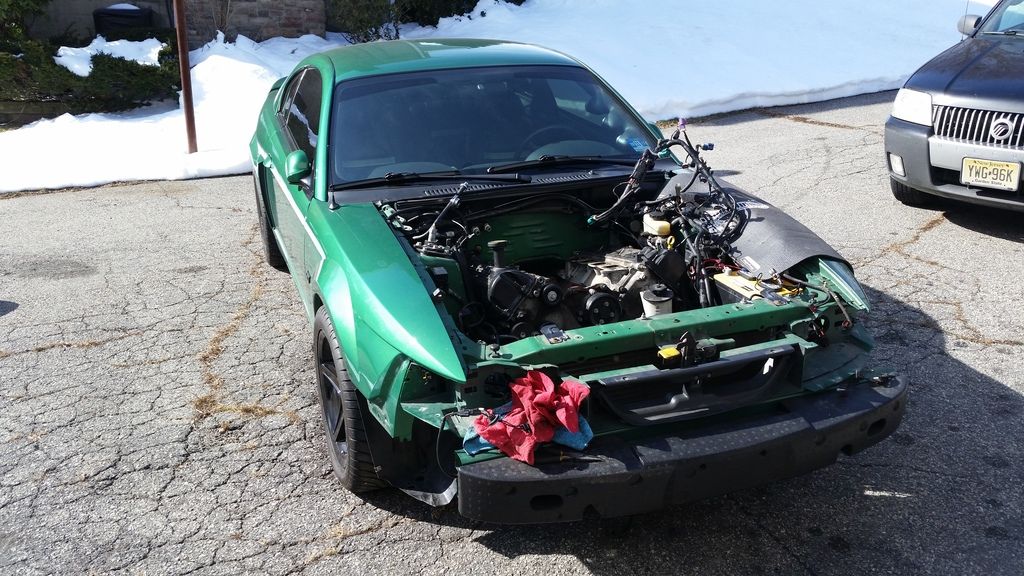

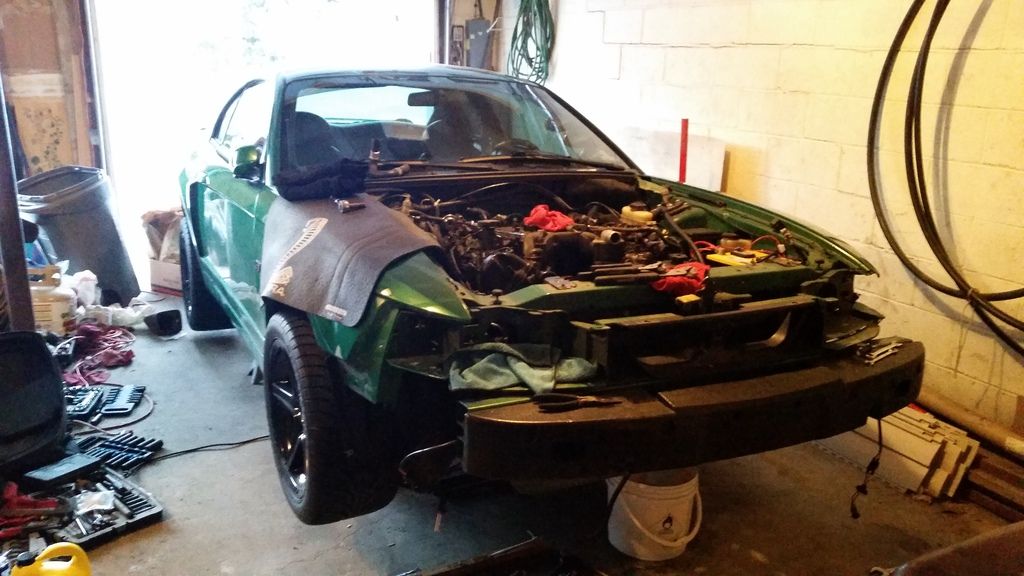

First things first, the car went up in the air on stands. Removed the hood, supercharger, intake manifold, drained fluids, etc.



Then the car was pushed outside and placed on stands again. And the motor was pulled.



Won't lie, it was scary seeing it that empty. I felt crazy for pulling a perfectly fine 8x000 mile motor. Motor with my buddy Mike who helped me out through this project.

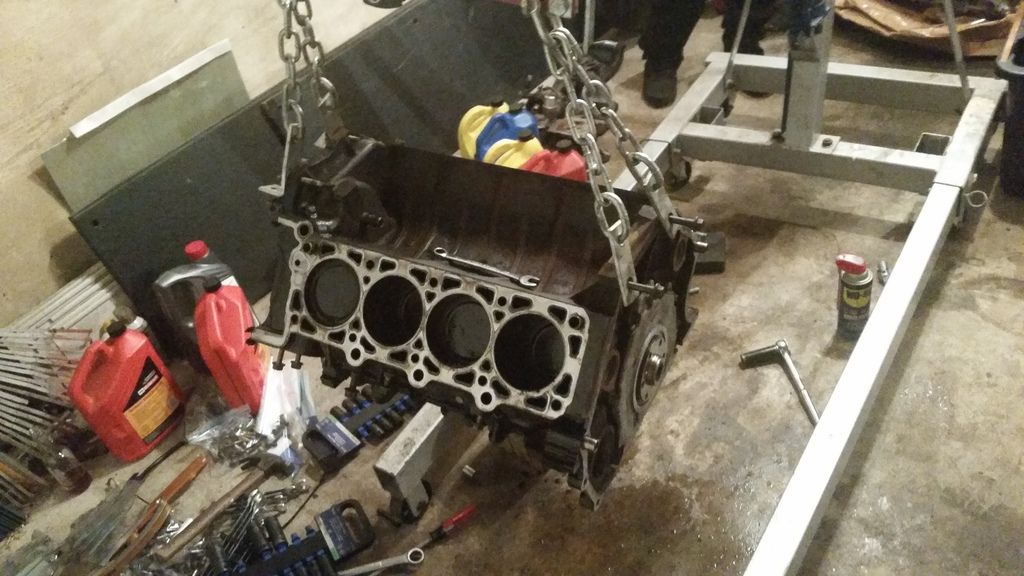

Pulled timing cover, valve covers, stripped it essentially. Ohhhh beautiful.

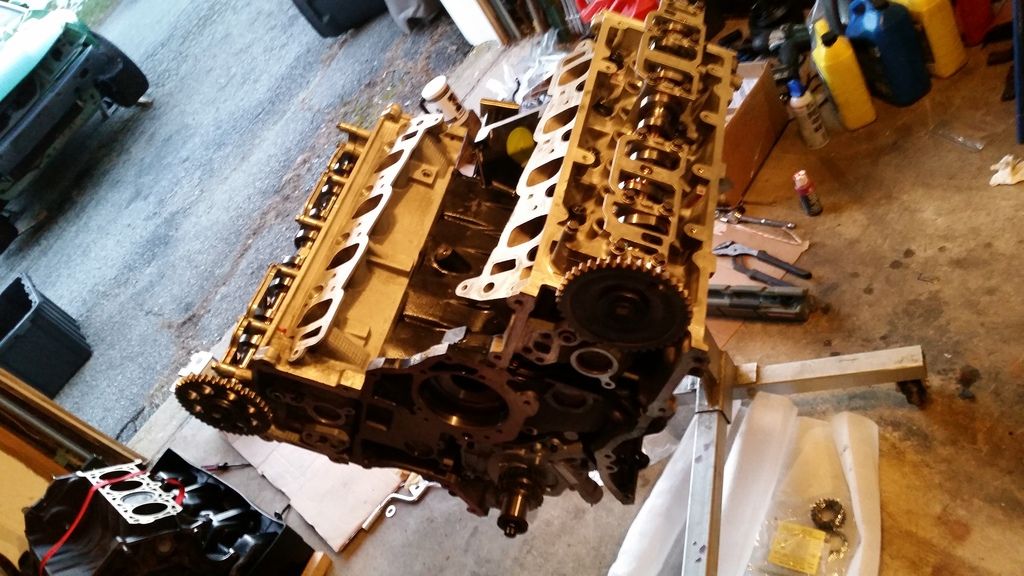

Removed the cylinder heads/cams.

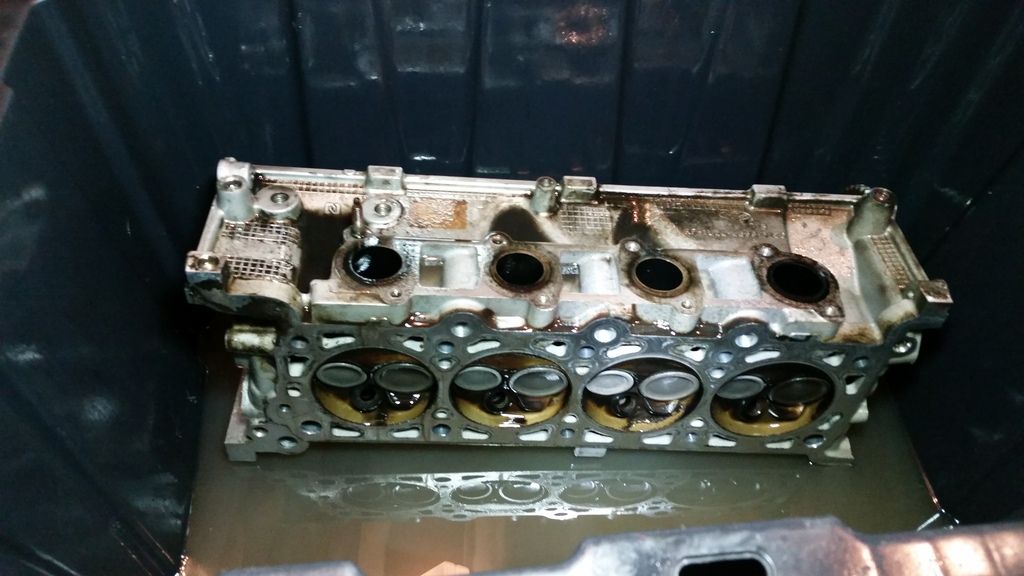

Then soaked the heads in lacquer thinner and WD-40 and scrubbed them with a brass brush.



And after, all clean!!

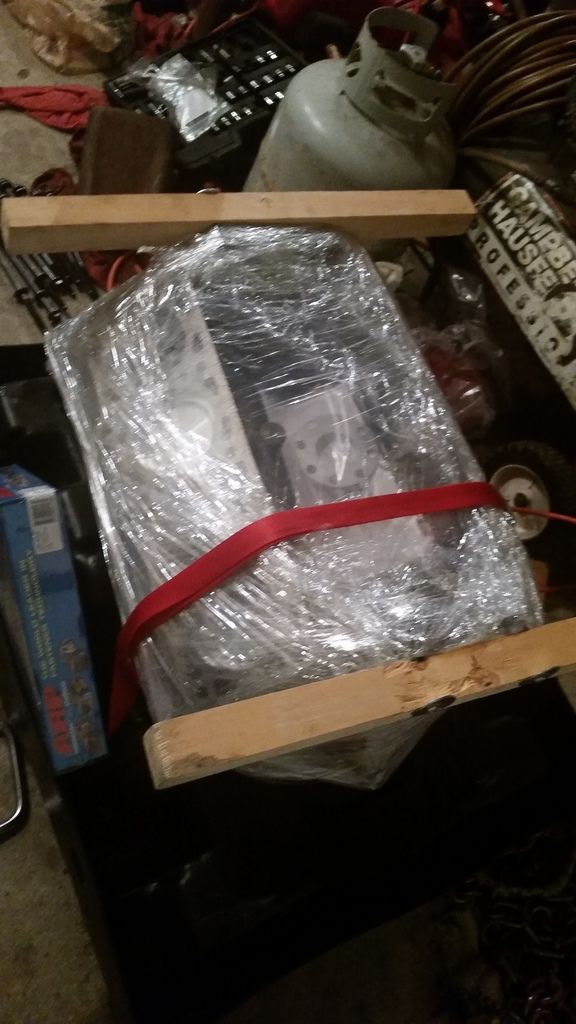

Then the shortblock would be cleaned up, oiled, and stored.



And this came too!



Now it's time to fly to Newark. Yay...
5rand0n7 likes this.
Snorky is offline
post #10 of 101 Old March 18th, 2017, 12:07 AM
Moderator

SSG Pate's Avatar

Join Date: Sep 2010
Location: Tennessee
Posts: 13,554

iTrader: 9 reviews
Awesome man, I love to see these cars together but let me warn you I was in the same boat as you using my car as therapy after my last trip to Afghanistan however i ended up needing to go to therapy for my car by the time it was all said and done LOL..

I look forward to seeing you make some progress im around if you need anything.


Convertible Crew Founder
Proud Iraq and Afghanistan War veteran

700 RWHP Club Member #1

Vortech T Trim @18 PSI
604 RWHP 516 FT LB
[email protected]@ 523RWHP

Precision Turbo 7675 CEA @ 20 PSI
738 RWHP 691 FT LB
10.9 @ 131 MPH
SSG Pate is offline
post #11 of 101 Old March 19th, 2017, 05:00 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
Quote:
Originally Posted by SSG Pate View Post
Awesome man, I love to see these cars together but let me warn you I was in the same boat as you using my car as therapy after my last trip to Afghanistan however i ended up needing to go to therapy for my car by the time it was all said and done LOL..

I look forward to seeing you make some progress im around if you need anything.
Lol point taken, I'll definitely keep note of that! I suppose for us (those who have the inability to leave things alone) thsee things have an ability to snowball away on us.
Snorky is offline
post #12 of 101 Old March 20th, 2017, 12:19 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews

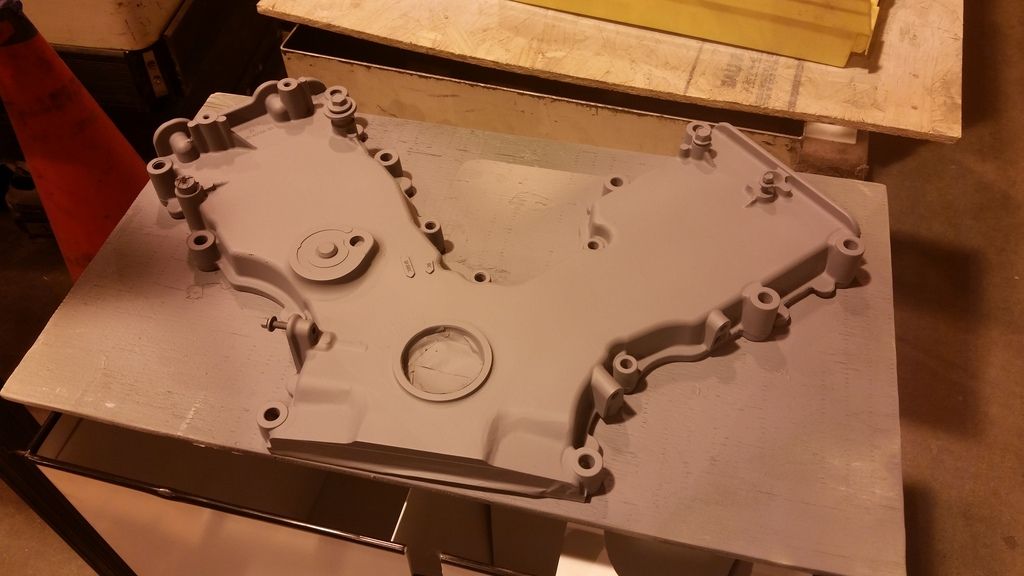

At this point, stripped down the tI'm ing cover, valve covers, thermostat housing, water pump and water jacket and prepped for paint.





And gloss black









Looking good
Snorky is offline
post #13 of 101 Old March 20th, 2017, 02:54 PM
Torchin tires...

mellis's Avatar

Join Date: Oct 2012
Location: Central MA
Posts: 2,206

Garage
iTrader: 2 reviews
This is awesome! Im doing almost the exact same thing to mine currently. Built motor, on3 turbo, etc.

Im pumped to see someone using the on3 fuel system. This will be on the list for next winter i think! Looks like an extremely easy and well put together kit. More than capable of handling what i need. (currently a single 320lph pump, which will be my limiting factor i think)

2004 Torch Red GT
Motor build + turbo swap in progress...
mellis is offline
post #14 of 101 Old March 20th, 2017, 09:51 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews

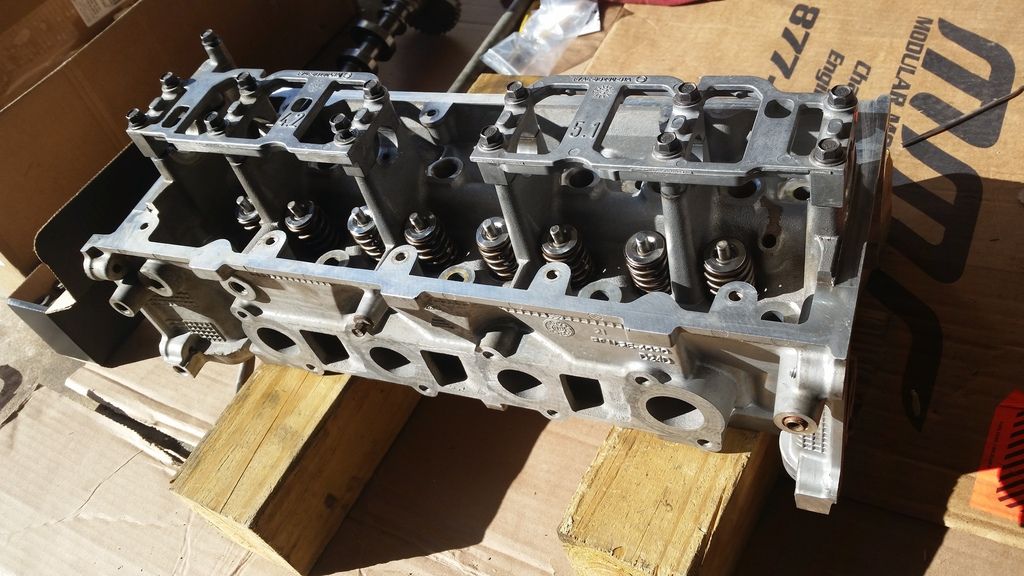

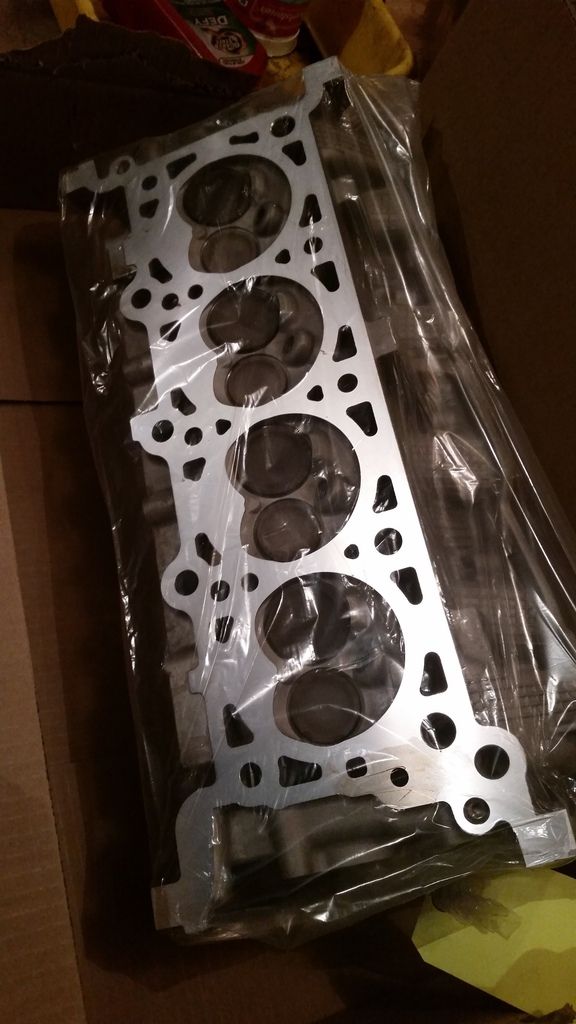

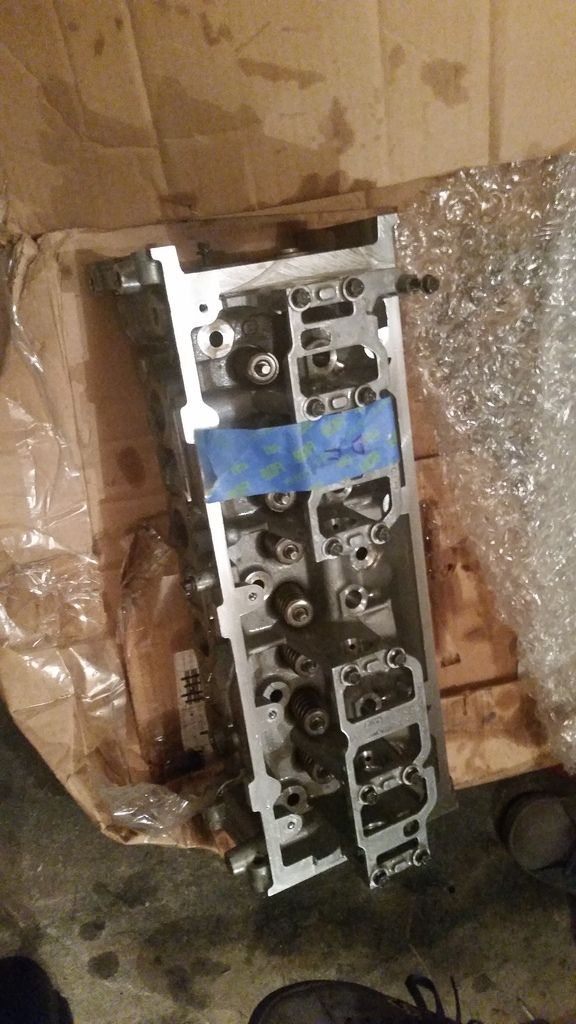

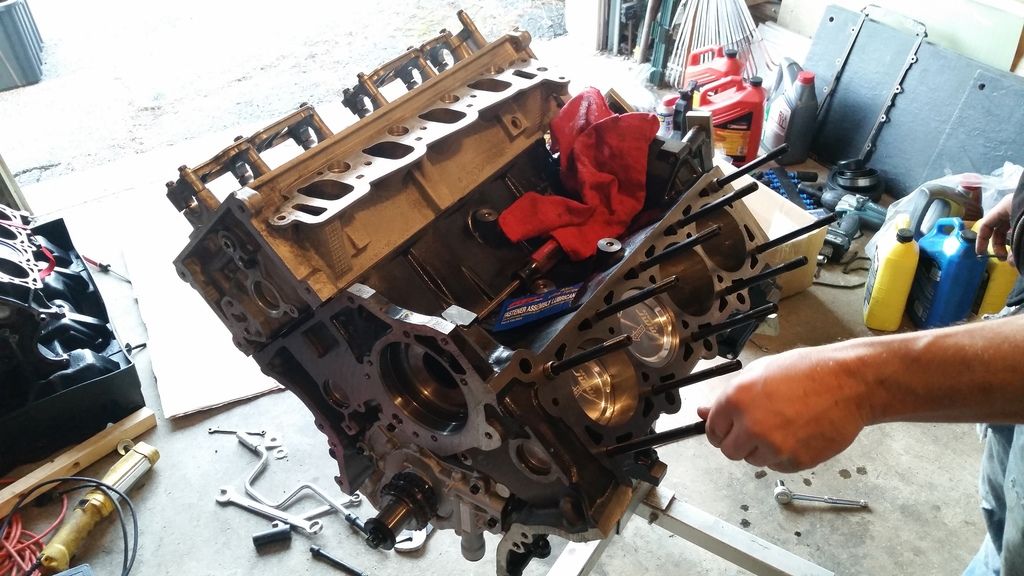

My cylinder heads are back, magnafluxed, decked and pressure checked. Looking good! Only took .002" clean up.

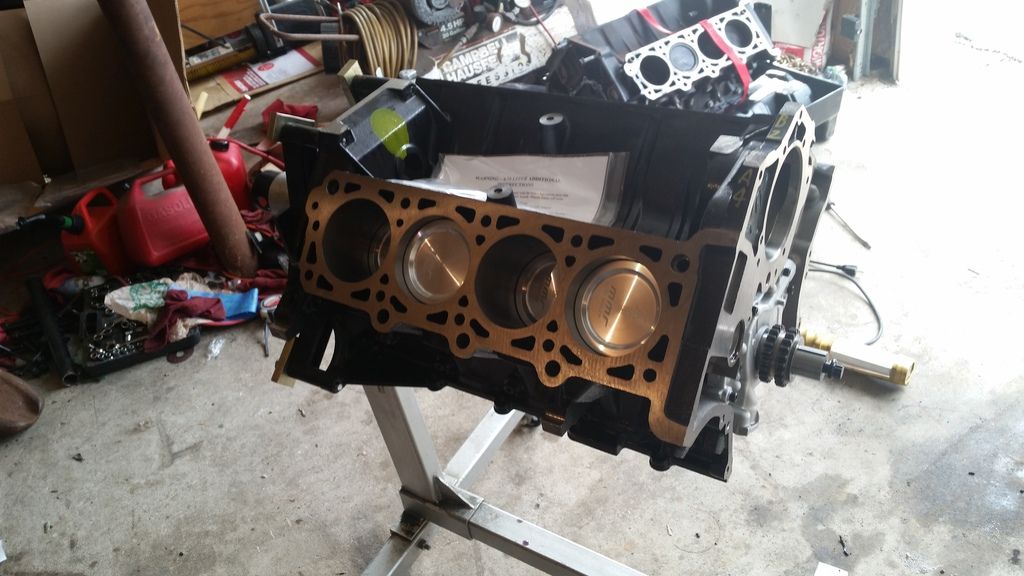

And here's the short block. Some of you may frown from this.

MMR 900 4.75 STROKER
Dished pistons for 9.5:1 compression
Mmr dodged pistons
Manley forged H beam rods
Pistons Notched
Ford racing cobra oil pump with billet gears
ARP 2000 bolts
Mmr side cap bolts.



Used the spring compressor to remove the stock springs in favor for some Brian TOOLEy racing springs with titanium seats.



Added a set of ARP head studs.. awwwwyeea.



Heads installed.. the comp 262 cams were sold for $500 and the money went towards this set of degreed CMS stage 2 turbo cams and the TFS adjustable crank gears. (This turned out to be a big problem, more on that later.)

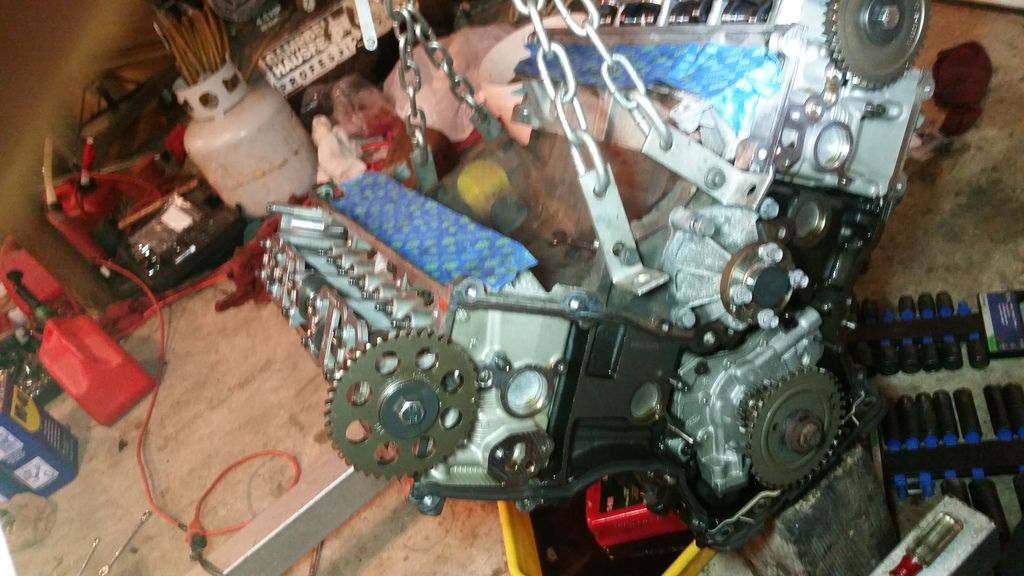

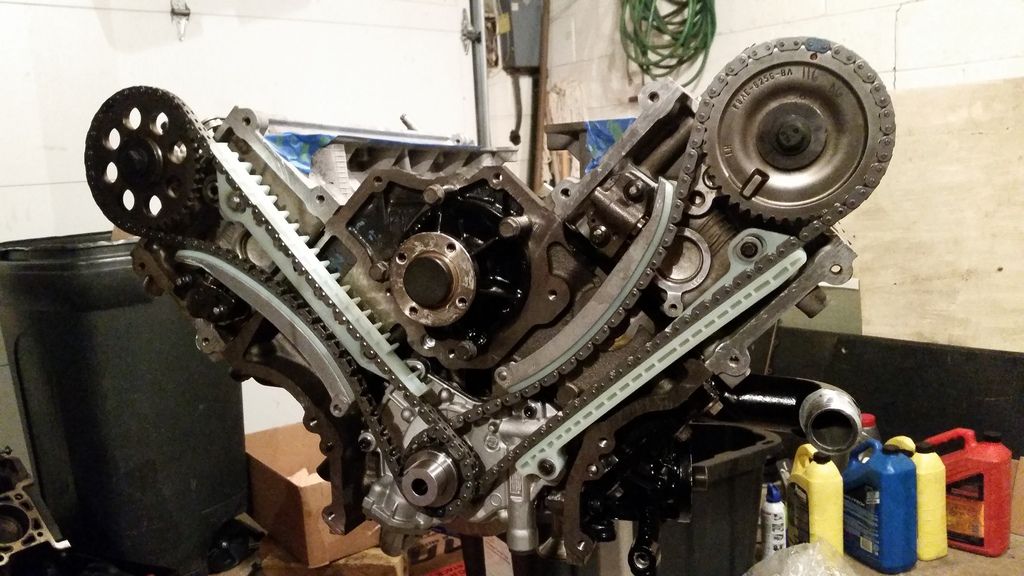

Water pump installed as well as new ford timing chains and guids. Motor timed. Woot woot!

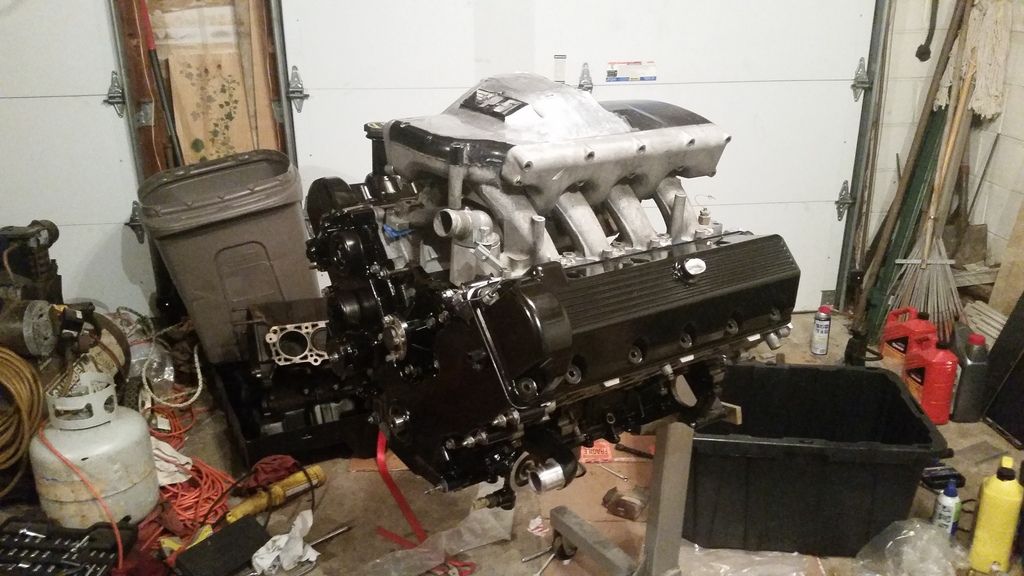

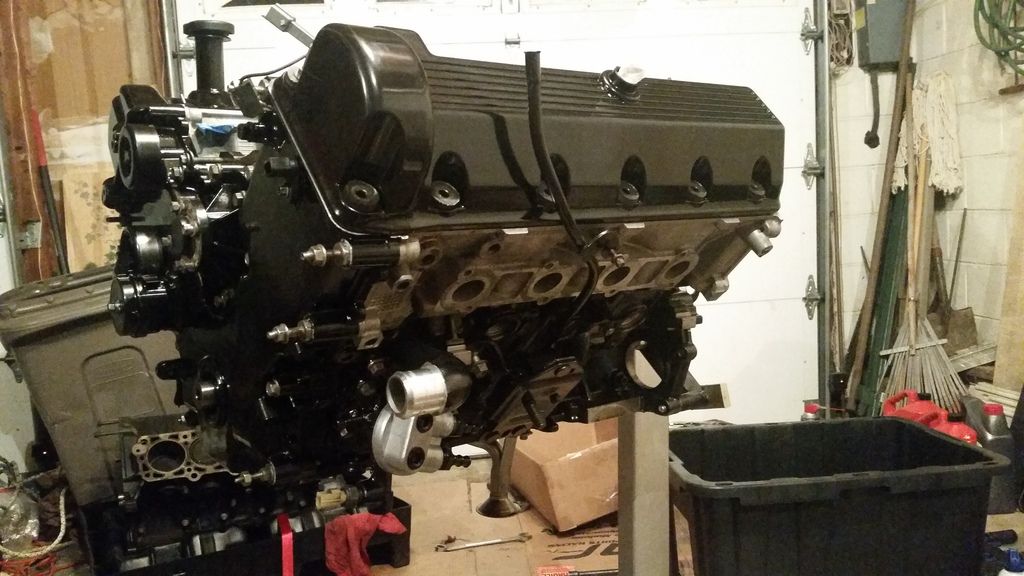

Water jacket, motor mounts, timing cover, installed, valve covers loosely mounted

Snorky is offline
post #15 of 101 Old March 20th, 2017, 09:52 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
Quote:
Originally Posted by mellis View Post
This is awesome! Im doing almost the exact same thing to mine currently. Built motor, on3 turbo, etc.

Im pumped to see someone using the on3 fuel system. This will be on the list for next winter i think! Looks like an extremely easy and well put together kit. More than capable of handling what i need. (currently a single 320lph pump, which will be my limiting factor i think)
If you change your mind on going return style. I have a KB 20 amp BAP laying around I could sell you. I'll keep this thread moving along
Snorky is offline
post #16 of 101 Old March 20th, 2017, 10:23 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
Ohhhhh man!! The giant tortoise is in! I traded my bassani midlength headers and off road x-pipe for the rare P-51 intake. Threw it up there to see how it would look.

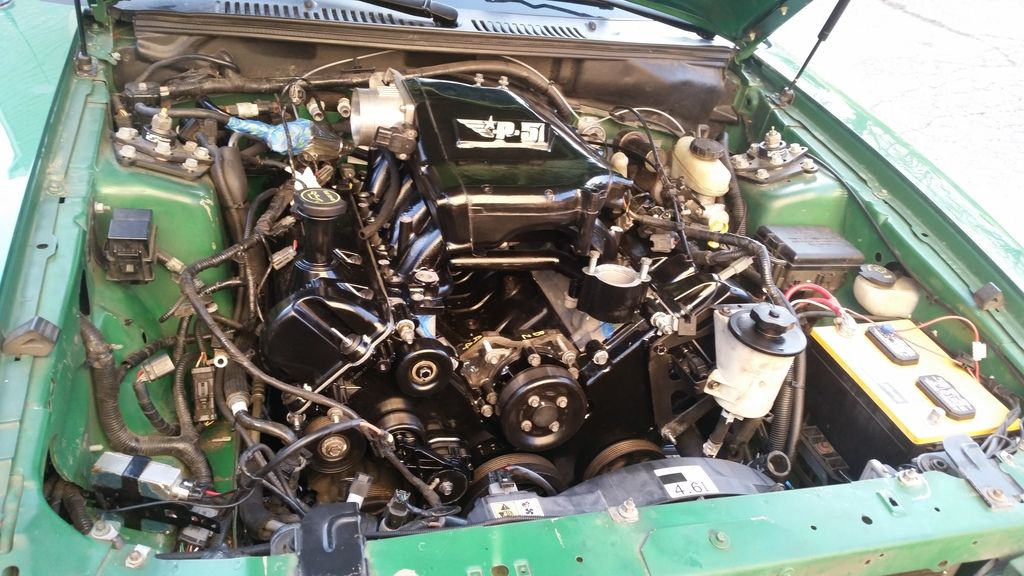

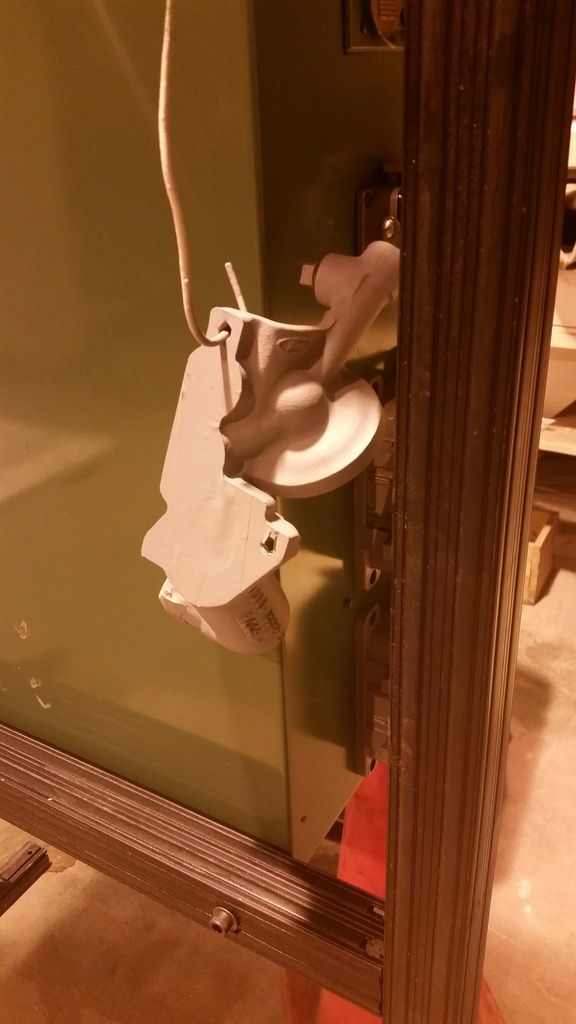

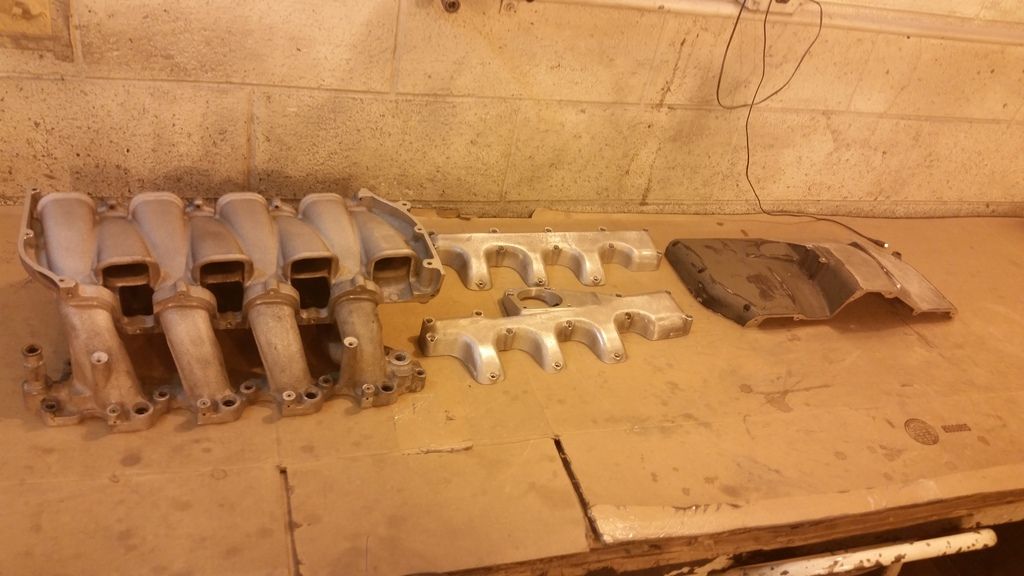

Disassembled and ready for paint.

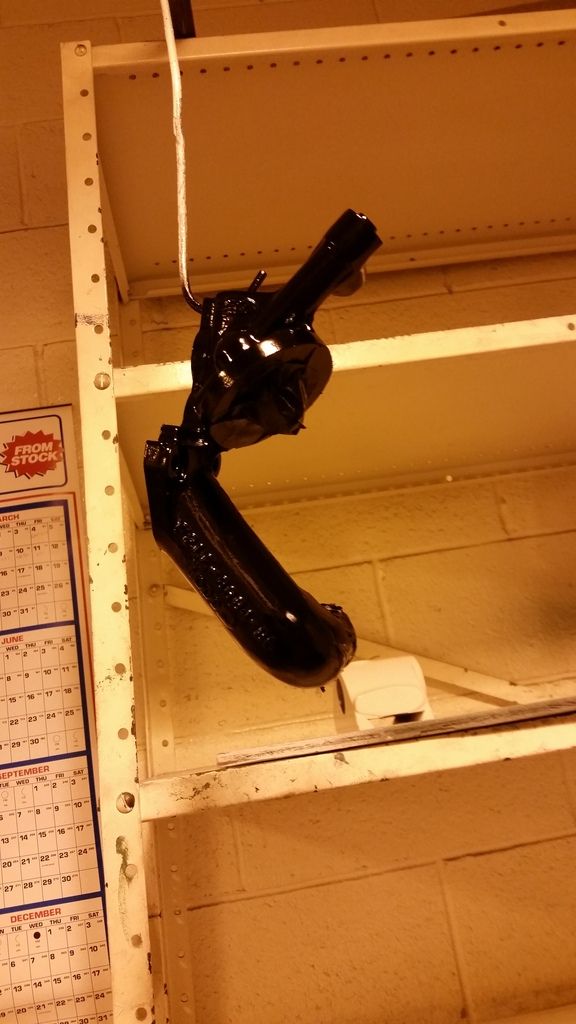

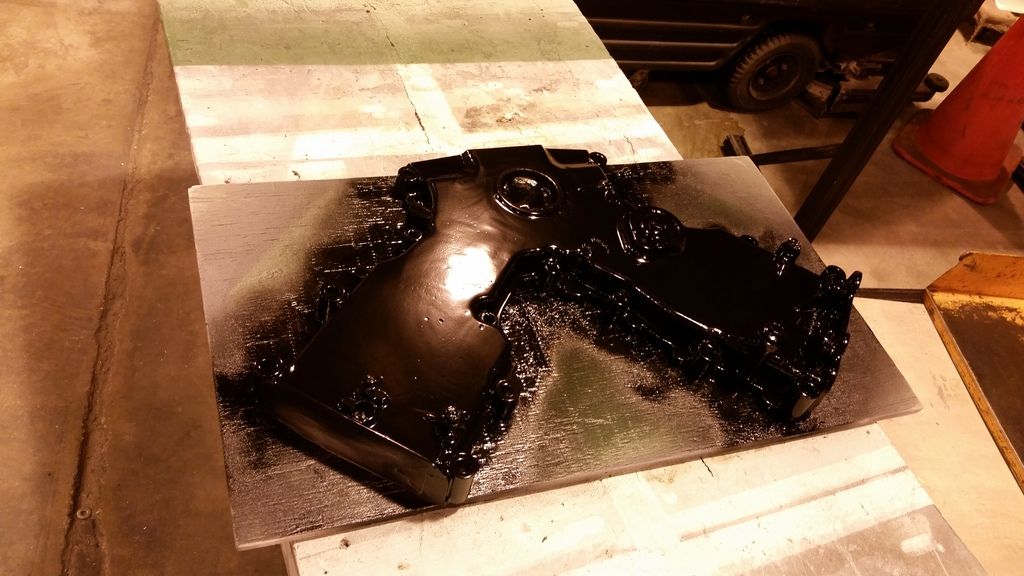

Painted gloss black. Why so much black? To me it gives a factory like vibe to it.



Here it is resting atop the motor with the headers installed.

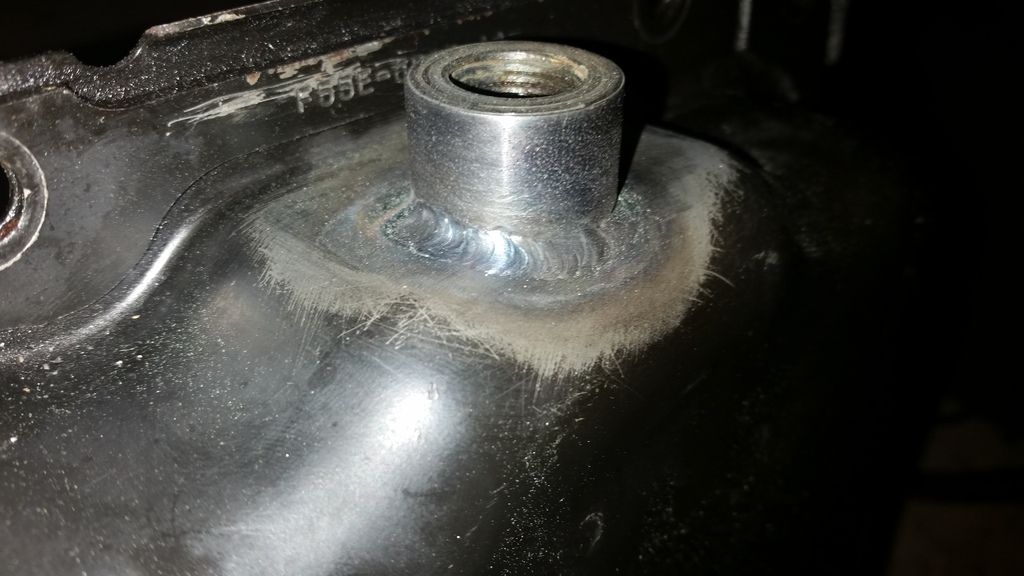

Oil pan drilled and bung welded to it.



Pan installed as well as rear main seal and pilot bearing.
GBPackerFan likes this.
Snorky is offline
post #17 of 101 Old March 20th, 2017, 10:38 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
That P-51 is literally 45 lbs, LOL. Like good god! It has an awesome design. To it being a true cross ram with mildly long and fairly straight runners to it. The plenum that feeds it is massive.

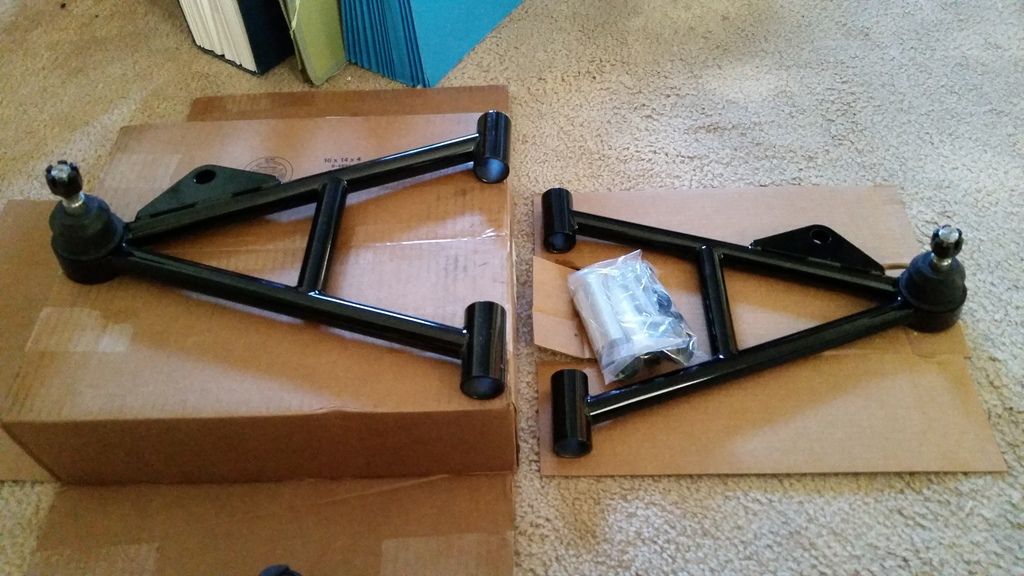

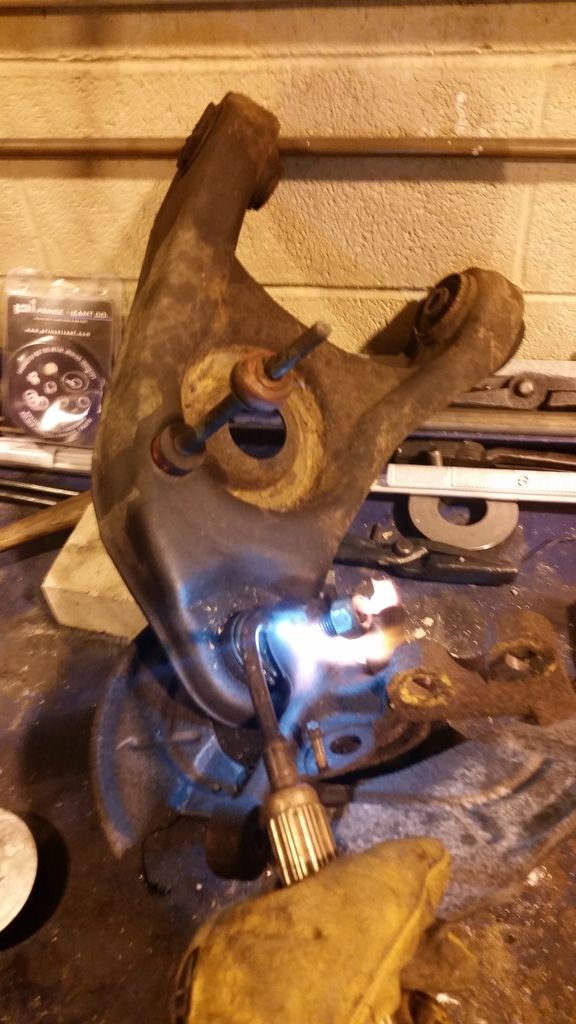

Back to the build. Started on the suspension. Removed the stock A arms, upper spring perches and knuckles.. the knuckles required some persuasion. Though...

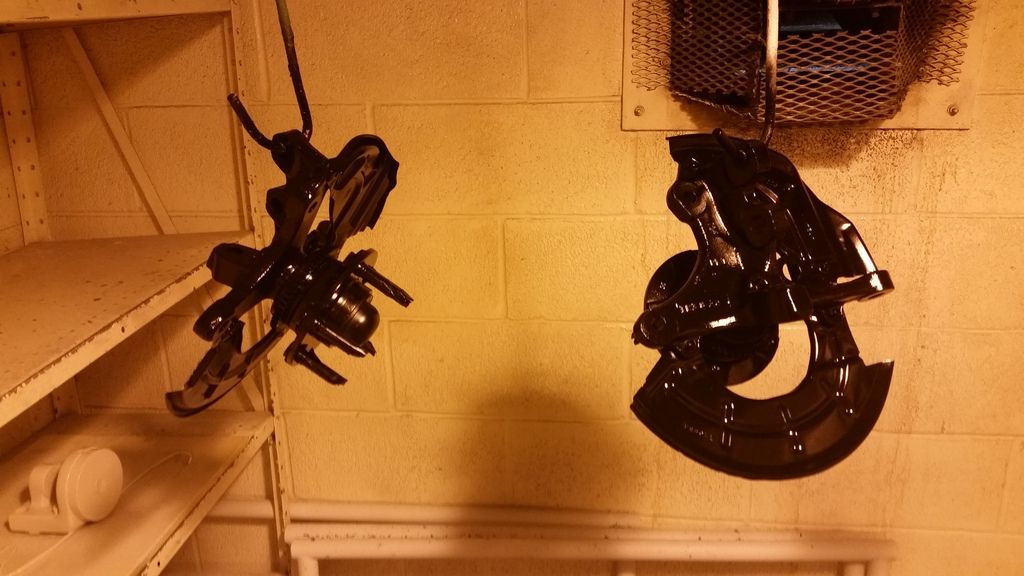

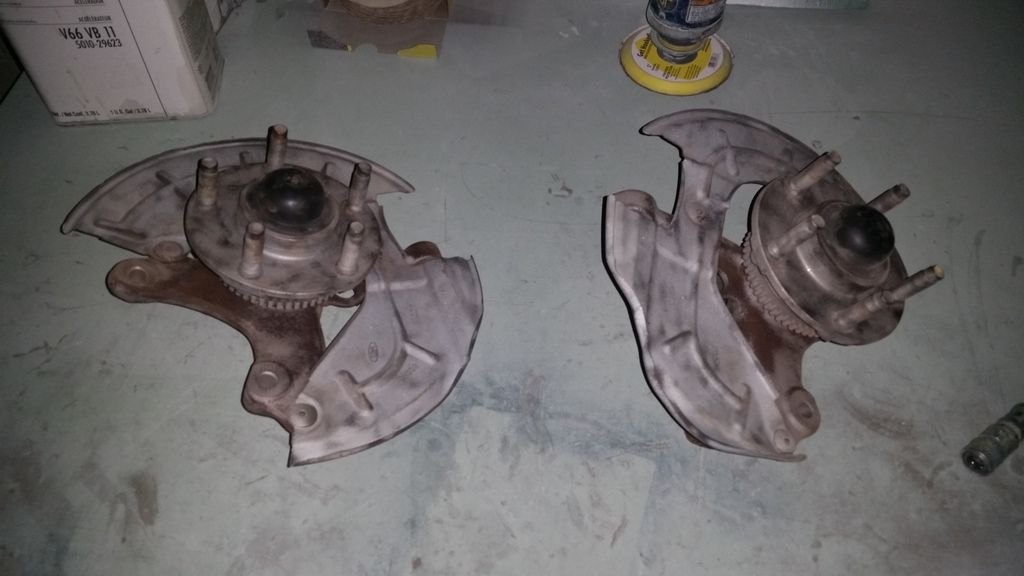

Knuckles and abs sensor bracket prepped.

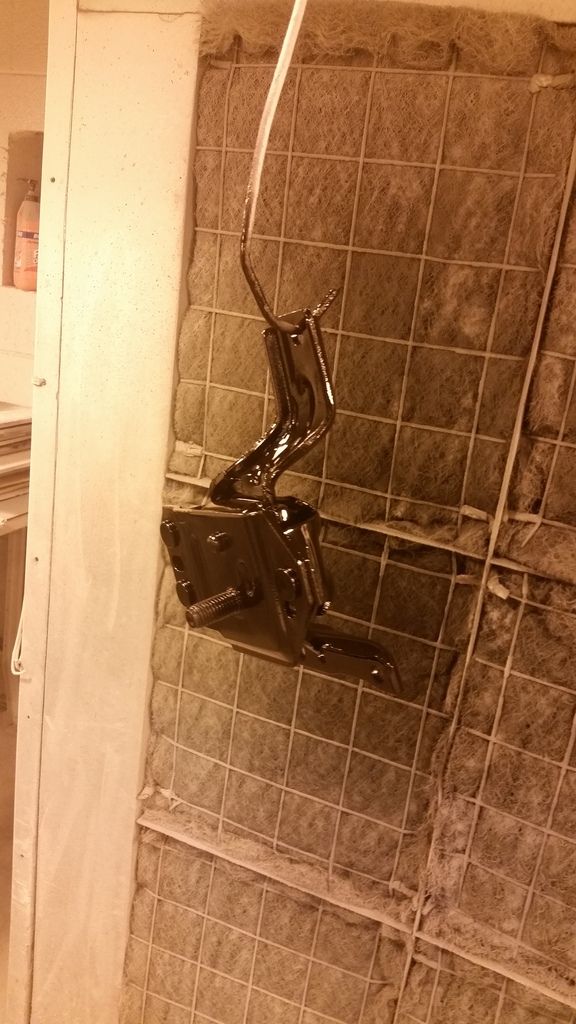

And painted

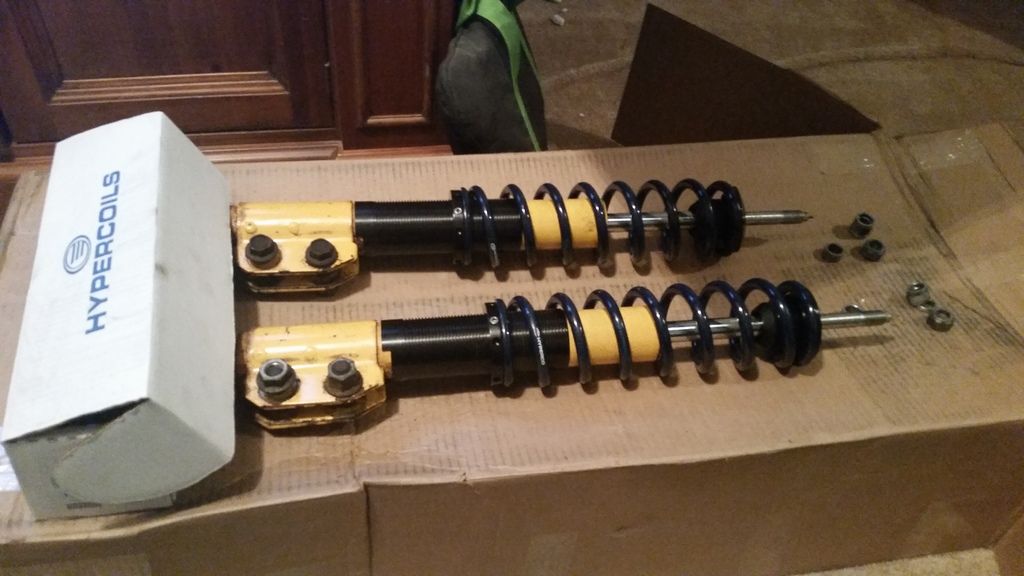

Maximum motorsports coilover conversion kit came in. Converted my Koni yellow single adjustables using the 250# hypercoils.



A arms installed. (Which the tq spec is apparently "Tighten till the when you let the a arm go, it slowly drops" I did it to factory tq spec and it ruined the bushings >_< UPR kindly sent me a new free set since they never listed a tq spec.

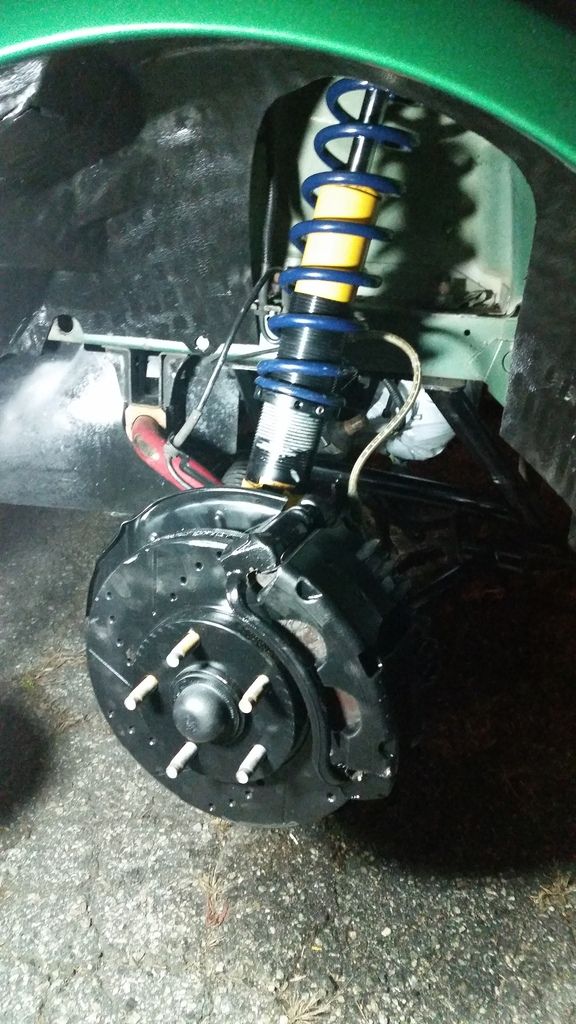

Reinstalled. Yes, I painted the rotors, and yes, after this picture I stripped the paint from the contact surfaces. So no worries!! I am not crazy, lol just wanted paint on the edges, etc.

Snorky is offline
post #18 of 101 Old March 20th, 2017, 10:51 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
While I was in their I tried a McGuire black refresh spray on the inner plastic liner post cleaning it and it turned out like that.
Snorky is offline
post #19 of 101 Old March 20th, 2017, 11:06 PM Thread Starter
Hardcore Enthusiast

Snorky's Avatar

Join Date: May 2010
Location: NJ
Posts: 1,407

Garage
iTrader: 1 reviews
Now that the suspension up front has been completed.

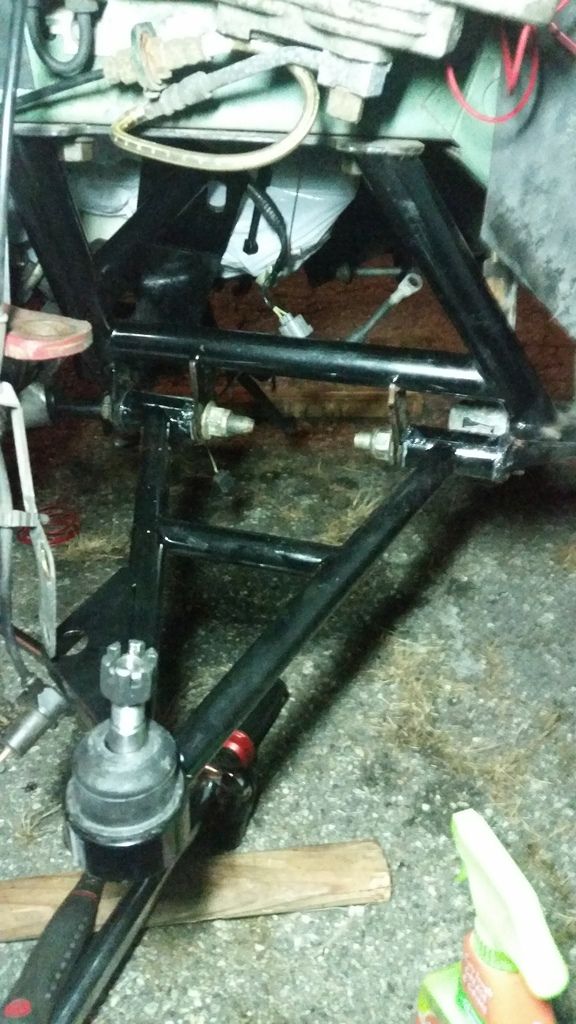

UPR tubular K-member and A arms
Koni yellow single adjustables MM coil over conversion.
UPR bumpsteer kit? Or is it steeda? Don't remember.
Eibach sway bar
MM CC plates.

Good setup. Love the ride quality with the konis.

On the ground.



Installing the motor was a pain. Had to pull it back out to remove the passenger side FF header. Then it went right in. Then reinstalled the header. Motor mounts were left semi loose for tranny install. dropped the intake manifold on it to admire it. Ohhhh ahhhhh!!!



cleaned the garage up and pushed the car back inside for the rest of the project, (tranny next to it)

GBPackerFan likes this.
Snorky is offline
post #20 of 101 Old March 21st, 2017, 03:32 PM
Moderator

SSG Pate's Avatar

Join Date: Sep 2010
Location: Tennessee
Posts: 13,554

iTrader: 9 reviews
Looking great

I didn't see that new Trigger wheels on the front of the crank?

don't forget to use that spacer between your flexpate and crank shaft.


Convertible Crew Founder
Proud Iraq and Afghanistan War veteran

700 RWHP Club Member #1

Vortech T Trim @18 PSI
604 RWHP 516 FT LB
[email protected]@ 523RWHP

Precision Turbo 7675 CEA @ 20 PSI
738 RWHP 691 FT LB
10.9 @ 131 MPH
SSG Pate is offline
