Toph's All Out Turbo Build

Hey everyone, been working on getting all the parts for this build together for the past two years, so I figured its time to show it since parts are finally heading to the machine shop tomorrow. Hoping to have the car rolling and mechanically finished by the end of March/Early April.

I bought the car back in 2007 with 93k on the clock and didn't really do much besides the usual till out of college (CAI, dual exhaust, 8.8 gt axle, tubular control arms, aluminum driveshaft).

I took the engine/trans out in November, and have been working on buying the last round of parts for the final build. Currently I am waiting on my pistons to show up from summit racing, then two weeks at the machine shop, then assembly time.

Parts List:

Engine:
94 Supercoupe Block
94 Supercoupe Forged Crankshaft
94 Supercoupe Forged Ibeam Rods
Wiseco Tru Pro Forged Pistons 0.030" over (9.0:1 CR)
ARP Connecting Rod Bolts
ARP Head Studs
New Water/Oil Pump
39Lb/hr Cobra Injectors
Ported/Polished Heads (done by myself)
Ported/Polished Lower Intake Manifold (done by myself)
Windstar Upper Intake Manifold
65mm Mustang GT throttle Body
Autometer Oil Pressure Gauge
Autometer Water Temp Gauge
42% Underdrive Pulley
310LPH Fuel Pump
BA2400 MAF
LS1/6 Valve Springs
GT Valve Spring Retainers
Custom Camshaft (Specs to come)

Turbo:
Custom Stainless Steel Hot Side Piping
Master Power T3 S50 Turbo
Tial 38mm Wastegate (5psi spring)
Tial 50mm BOV
AEM Truboost Electronic Boost Controller
AEM Wideband A/F Gauge
Bar/Plate 32"x12"x3" Intercooler
3" Aluminum Intercooler Piping

Drivetrain/Suspension:
Promotion Gforce T5 Transmission
Valero 11" 26spline Clutch
Short Throw Shifter
Aluminum Driveshaft
03 Cobra Independent Rear Suspension
Prothane IRS Bushing Kit
MM IRS Differential Bushing Kit
IRS Differential Brace
Tokico Dspec Adjustable Front Struts
Tokico Front Lowering Springs (1.5" drop)
Bilstein Rear Shocks
03 Cobra Springs Cut for 1.5" drop
03 Mach 1 13" Front Brakes
Caster Camber Plates

And now, pictures.

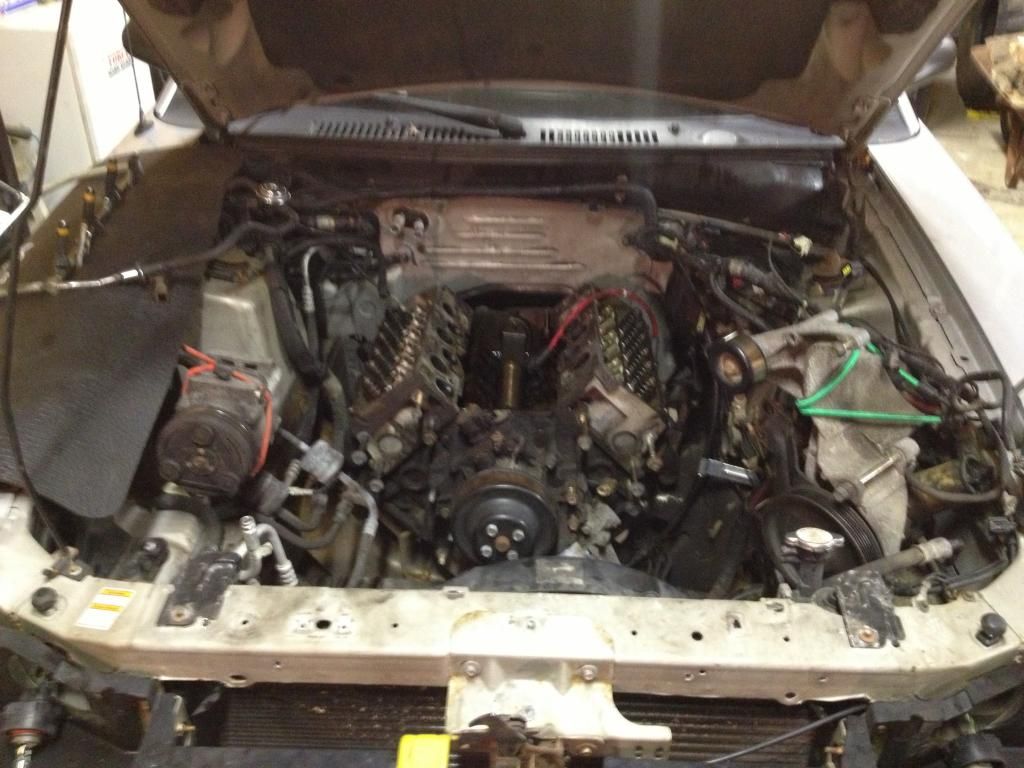

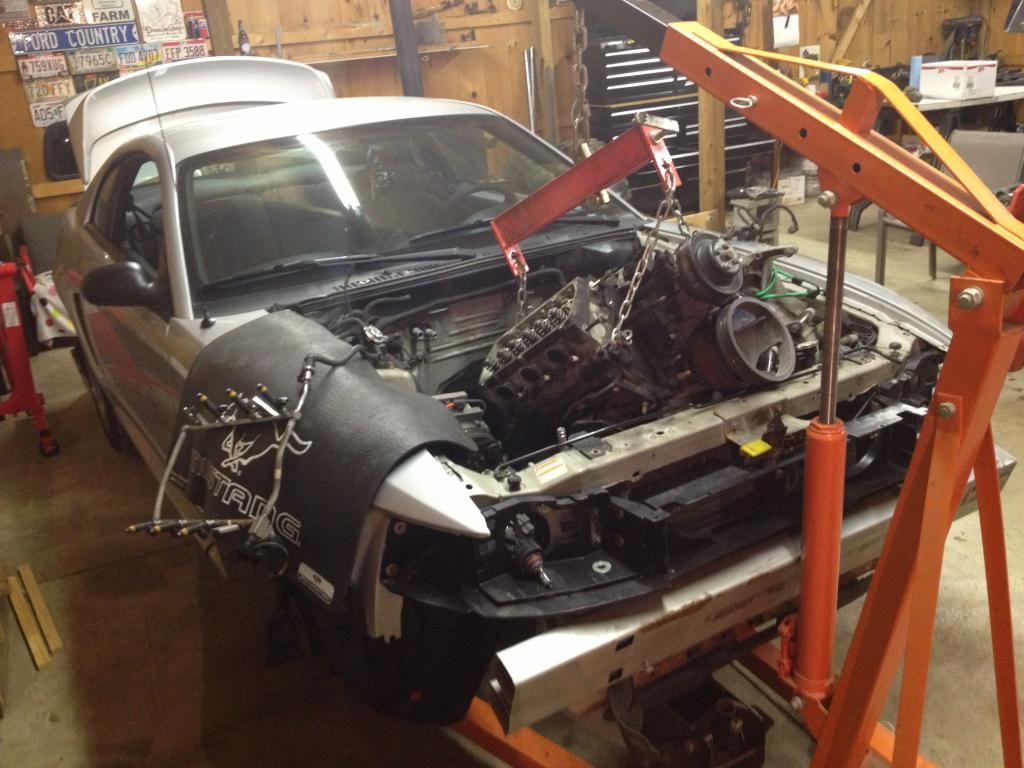

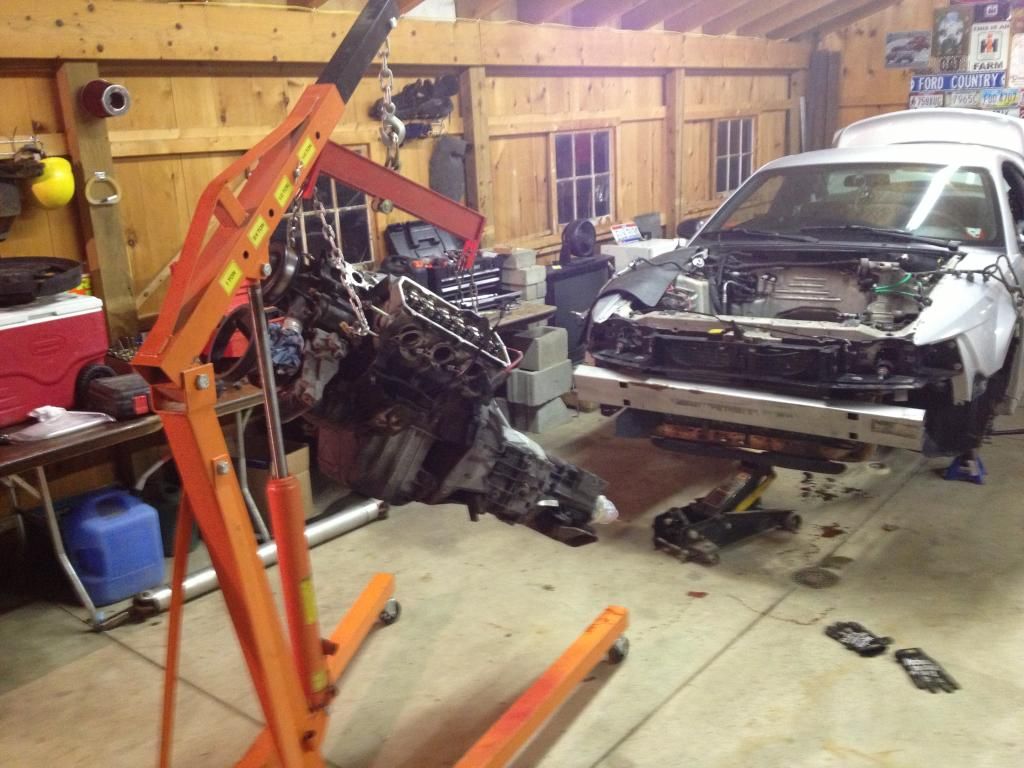

Old engine coming out, dad helping out

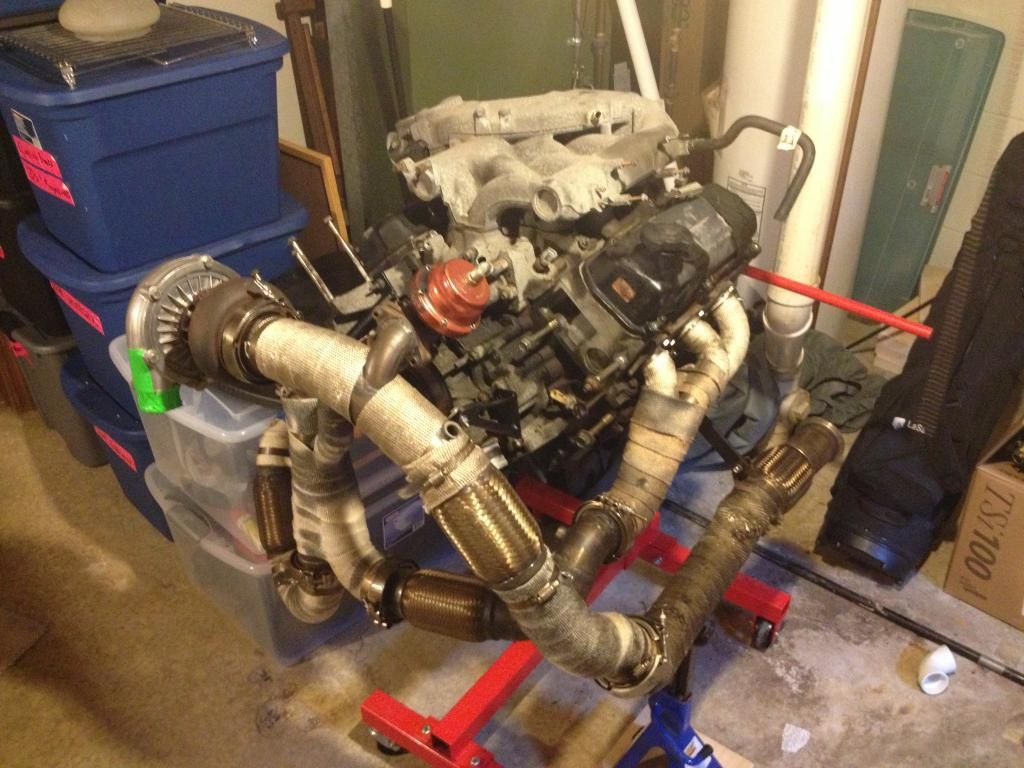

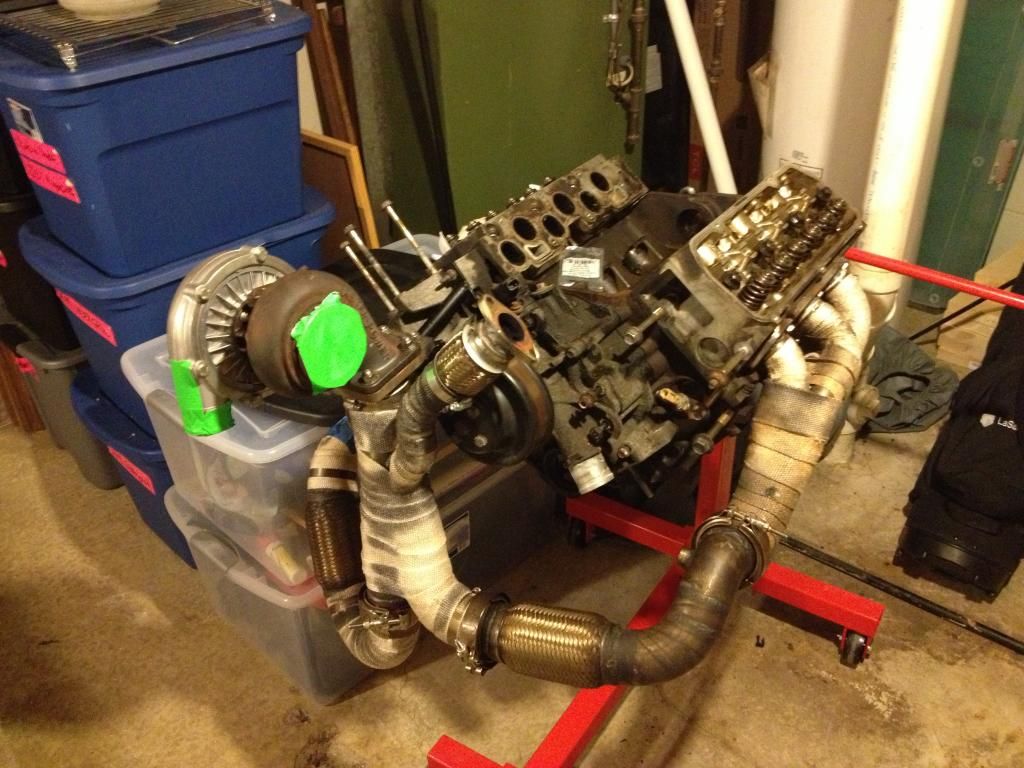

Mocking up turbo kit in my basement



Upper manifold will be replaced with windstar, just didnt have it when I took this pic


LS springs/GT retainers vs stock spring/retainer

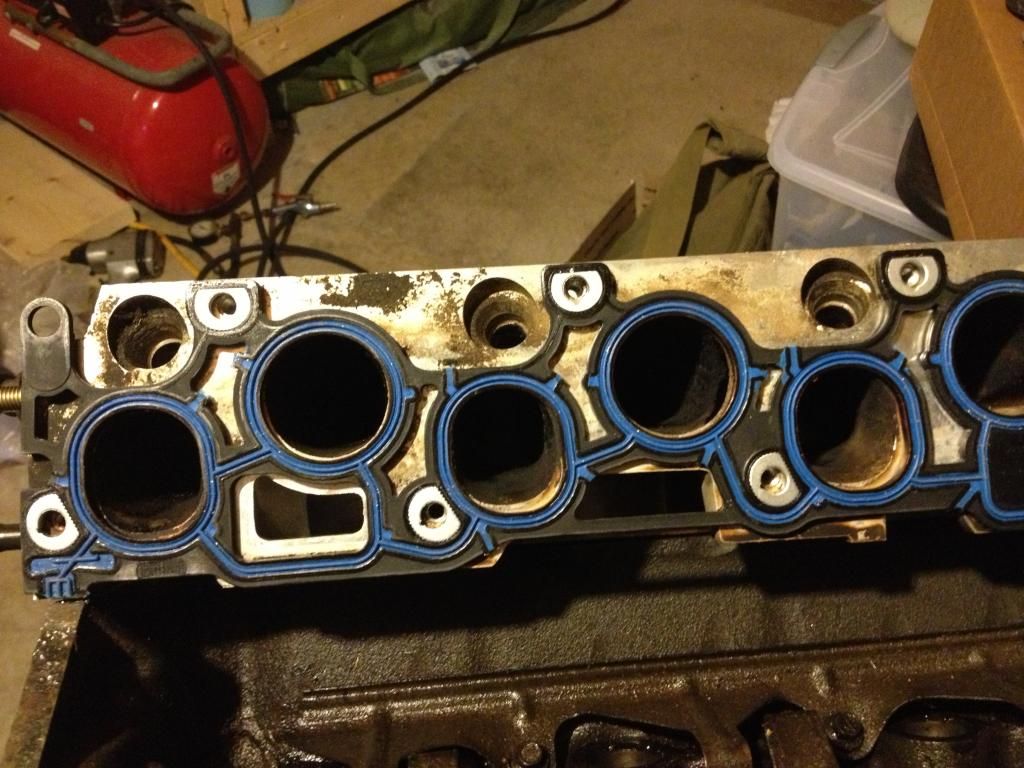

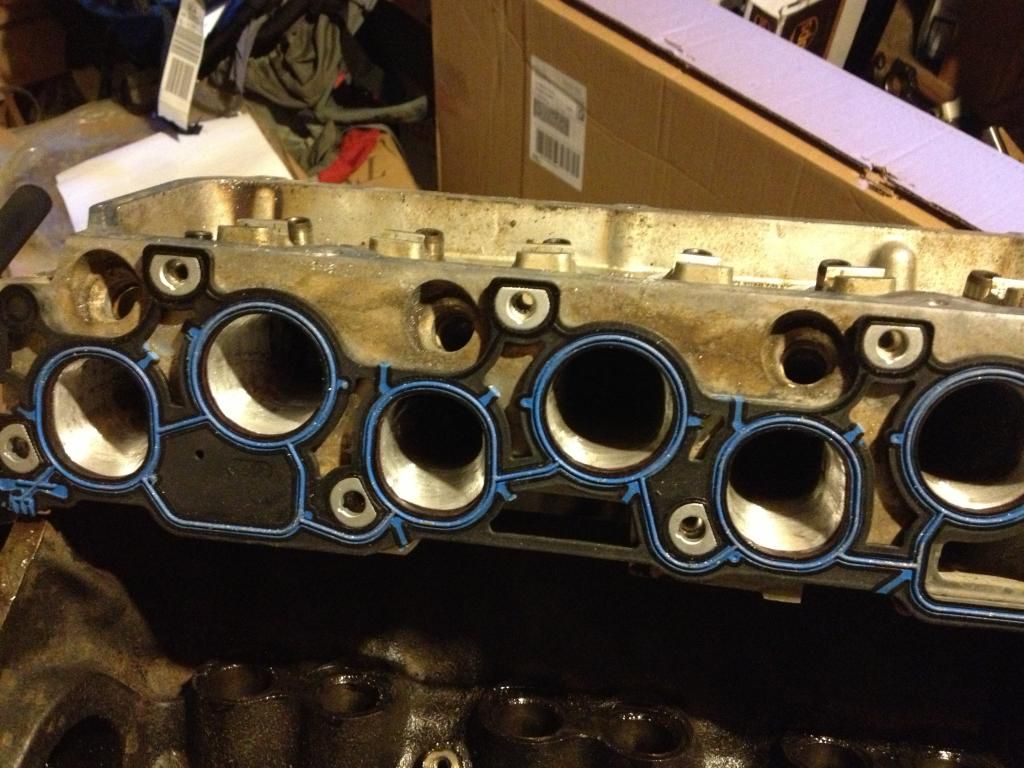

Porting Intake manifold:

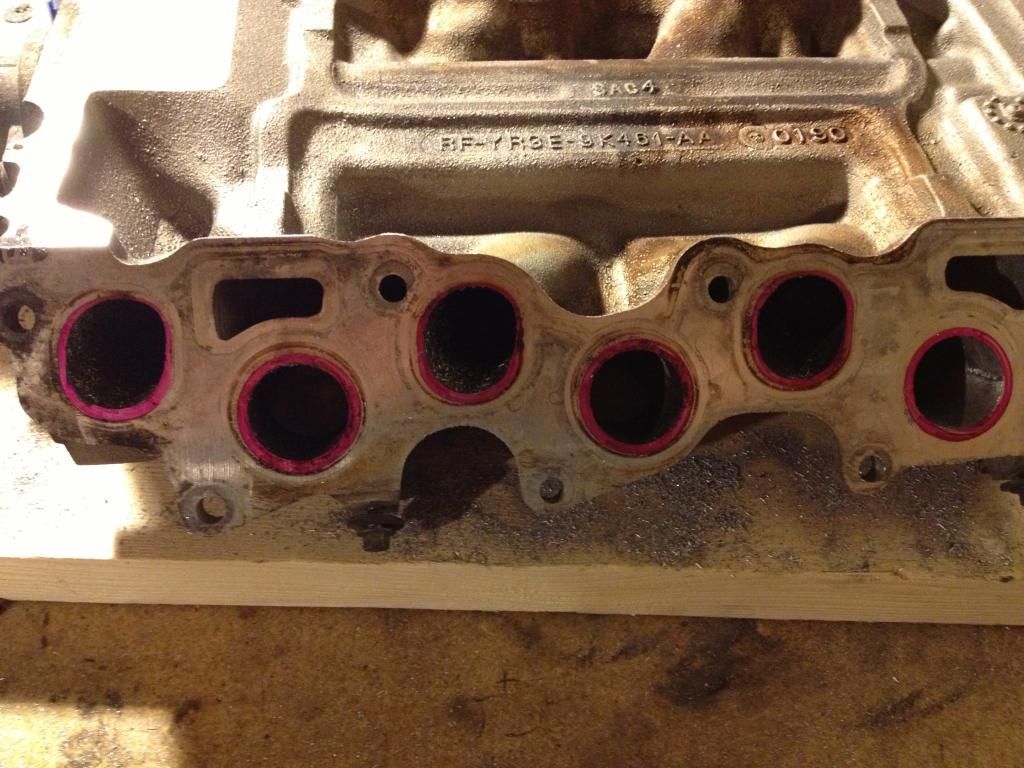

Before

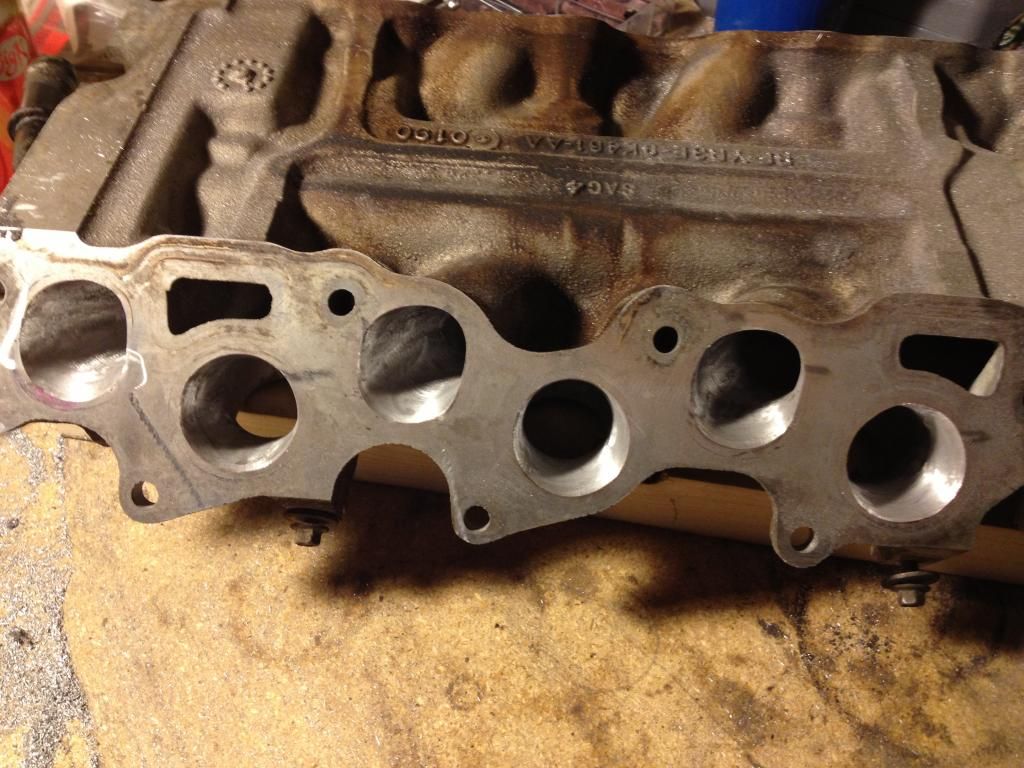

After

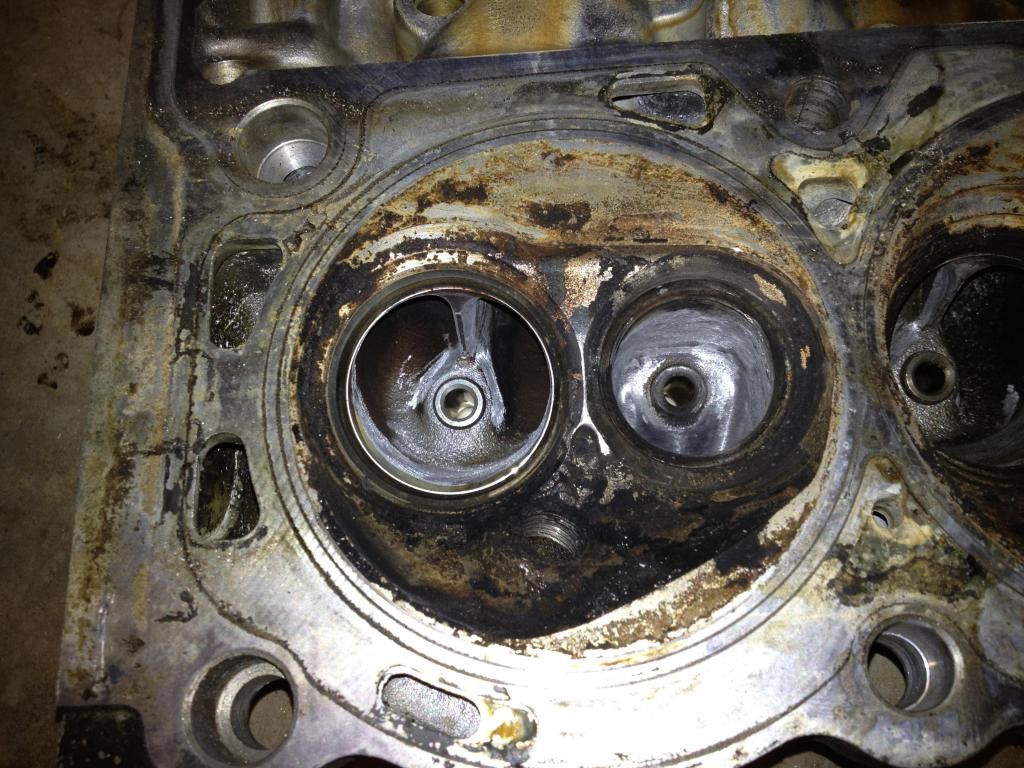

Bowl work, mostly just trimmed the radius where the ports come together, then smoothing out the exhaust as much as possible

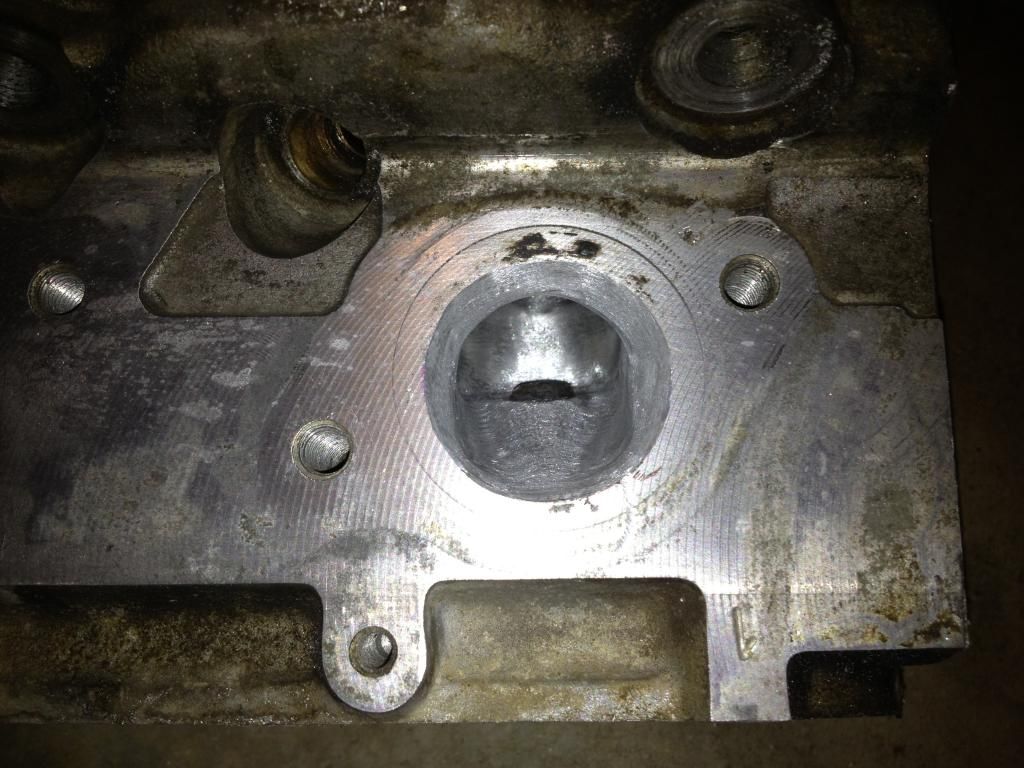

Porting exhaust

Before


After


General Porting Photos
Before


After


Cobra Brakes


Gforce trans

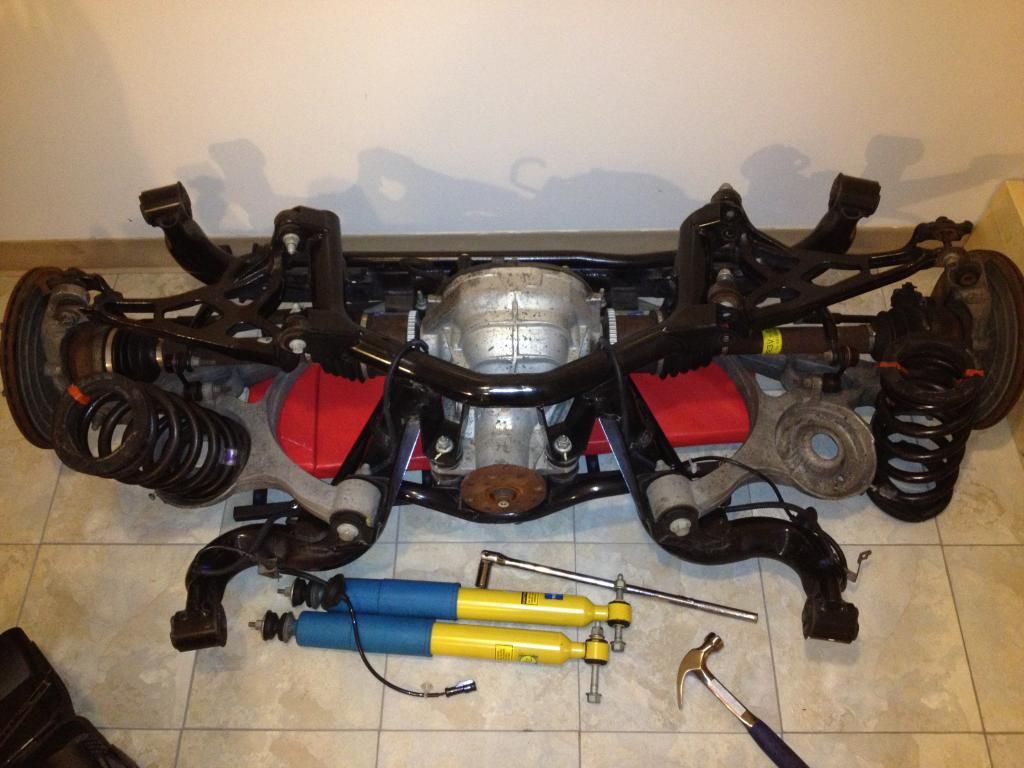

Cobra IRS

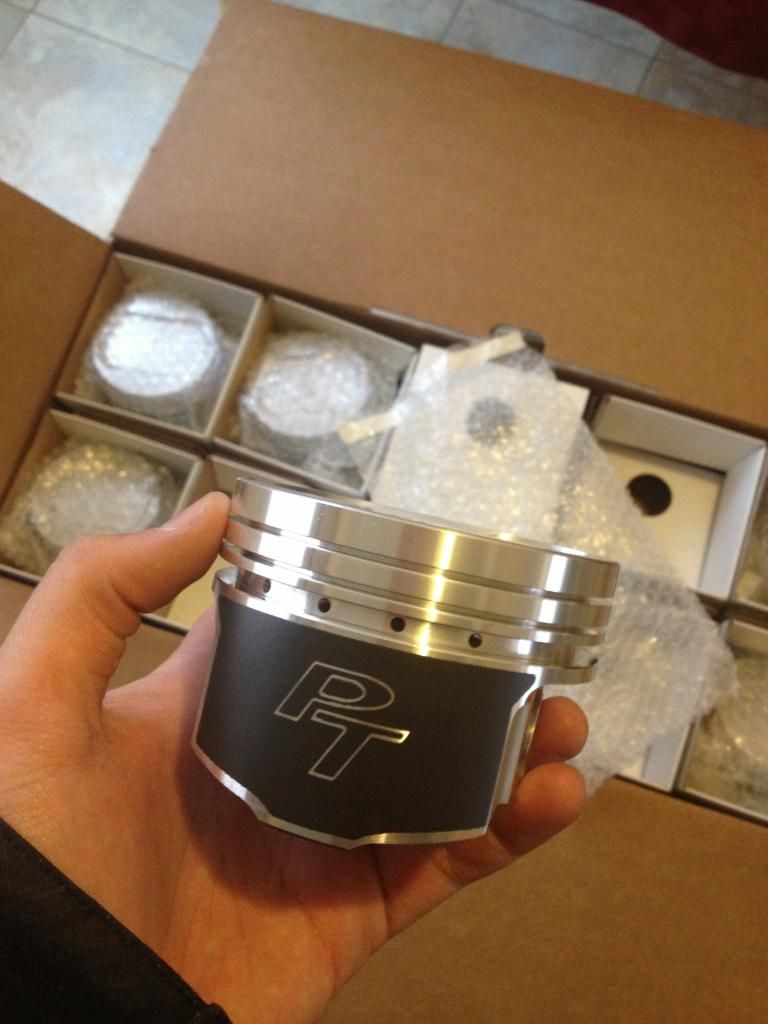

Wiseco Pistons


Parts Ready for Machine Shop

Last edited by Toph6888; December 28th, 2014 at 12:34 AM.
Toph6888 is offline
Sponsored Links
Advertisement

post #2 of 335 Old February 24th, 2013, 10:43 PM
MM Fanatic

Codeman's Avatar

Join Date: Nov 2007
Location: North Dakota
Posts: 3,145

iTrader: 1 reviews
Very excited to follow this thread. Looks like a nice port job that you did.


UDP, CAI, True Duals, LTs, 91 Tune from TT, 3.73 gears, Tlok,Windstar upper, GT TB, Ported lower, Comp 218/226 cam, FRPP C Springs, J&M LCA, Tokico Blue shocks and struts, and J&M Full Length Subframe Connectors
Codeman is offline
post #3 of 335 Old February 24th, 2013, 10:46 PM Thread Starter
Hardcore Enthusiast

Toph6888's Avatar

Join Date: Jan 2008
Location: Ohio
Posts: 1,624

iTrader: 6 reviews
Send a message via AIM to Toph6888
Quote:
Originally Posted by Codeman View Post
Very excited to follow this thread. Looks like a nice port job that you did.
Thanks man. Yah, getting the porting was a lot more work then I imagined it to be. All in all for the lower intake and both heads, about 8 hours, and I think I maybe have about 5 cartridge rolls left of that porting kit from jegs haha. Glad I got an air compressor or it would have never happened.
Toph6888 is offline
Sponsored Links
Advertisement

post #4 of 335 Old February 24th, 2013, 10:54 PM
MM Fanatic

Codeman's Avatar

Join Date: Nov 2007
Location: North Dakota
Posts: 3,145

iTrader: 1 reviews
yeah it takes tons and tons of times. I know I have about 8 hours into a set of heads that I have simply been practing on and am not done with. I have about a month to get my heads ready for my car so I will busy.


UDP, CAI, True Duals, LTs, 91 Tune from TT, 3.73 gears, Tlok,Windstar upper, GT TB, Ported lower, Comp 218/226 cam, FRPP C Springs, J&M LCA, Tokico Blue shocks and struts, and J&M Full Length Subframe Connectors
Codeman is offline
post #5 of 335 Old February 24th, 2013, 11:23 PM
MOAR BOOST

SlowSix's Avatar

Join Date: May 2010
Location: Pittsburgh, PA
Posts: 9,163

Garage
iTrader: 4 reviews
I'm a bit nervous to try to port my own heads haha.

Interesting to finally see your car man.


Turbo Build Thread
Status: Collecting parts for a stroker motor
SlowSix is offline
post #6 of 335 Old February 24th, 2013, 11:27 PM Thread Starter
Hardcore Enthusiast

Toph6888's Avatar

Join Date: Jan 2008
Location: Ohio
Posts: 1,624

iTrader: 6 reviews
Send a message via AIM to Toph6888
Quote:
Originally Posted by SlowSix View Post
I'm a bit nervous to try to port my own heads haha.

Interesting to finally see your car man.
Yah, I'm pumped to finally get this project into the final stretch. Not having the car since novemeber has sucked haha. Been going through major withdrawls (almost sold my DD outback for a 5 spd wrx or similar car about 4 times)

The porting wasnt too bad, the most nerve racking part was doing the bowl work. I covered the valve seats with a couple layers of athletic tape since its pretty tough, and that helped put my mind at ease since they were at least protected a little bit if I were to slightly bump them (which I thankfully didn't).

I barely did anything to the bowl.

BTW, I may have to come to PA to snatch that bumper off your car. Mine is about to fall off, and everytime I see your sig picture my eyes get greener and greener
Toph6888 is offline
post #7 of 335 Old February 25th, 2013, 12:03 AM
MOAR BOOST

SlowSix's Avatar

Join Date: May 2010
Location: Pittsburgh, PA
Posts: 9,163

Garage
iTrader: 4 reviews
lol lol. I had to crush a telephone pole for that bumper, you ain't getting it !


Turbo Build Thread
Status: Collecting parts for a stroker motor
SlowSix is offline
post #8 of 335 Old February 25th, 2013, 12:49 AM
Enthusiast

05Nlstang's Avatar

Join Date: May 2012
Location: Wisconsin
Posts: 932

iTrader: 0 reviews
this build is looking exciting good luck with it and keep us updated!

06 Mustang GT
cams and some other junk
Instagram: @jstacammed3v

Quote:
Originally Posted by crackpotfox View Post
....If a word doesn't exist, make one.
05Nlstang is offline
post #9 of 335 Old February 25th, 2013, 11:32 AM
Fee Fie Foe Fum

gaetz1985's Avatar

Join Date: May 2012
Location: Southern Il
Posts: 1,724

iTrader: 5 reviews
Subbed

World's First M112 Singleport Essex
gaetz1985 is offline
post #10 of 335 Old February 25th, 2013, 12:01 PM
hi you can call me mater

03 cristian's Avatar

Join Date: Jan 2011
Location: Douglas,ga
Posts: 4,845

iTrader: 5 reviews
Re: Toph's All Out Turbo Build

O Hope you know a udp will make the turbo spool up slower

Chill out, its the internet bro!


"I wonder if I sprayed some on my junk, I could go raw dog and not get herpes. But first I'd have to find a female willing to have relations."-kmac1622
03 cristian is offline
post #11 of 335 Old February 25th, 2013, 12:04 PM Thread Starter
Hardcore Enthusiast

Toph6888's Avatar

Join Date: Jan 2008
Location: Ohio
Posts: 1,624

iTrader: 6 reviews
Send a message via AIM to Toph6888
Well I ordered the rest of my gauges today, should be in in a few days, as well as the lifters for the engine. Everything should be purchased for the engine now except the pushrods, which I will have to measure once it goes together, and other than that just spark plugs. Any body have any suggestions on plugs to run on a turbo, and gap?

---------- Post added at 11:04 AM ---------- Previous post was at 11:02 AM ----------

Quote:
Originally Posted by 03 cristian View Post
O Hope you know a udp will make the turbo spool up slower

Chill out, its the internet bro!
The turbo is sized pretty small for this engine, and the combination of that, the gearing in the transmission, the gears in the IRS, and with the porting work I did for opening up the exhaust ports on the heads I don't have any concern with this turbo spooling. Its set up for quick spool, not high end power, as this will be a street car/autocross, not drag strip.
Toph6888 is offline
post #12 of 335 Old February 25th, 2013, 01:03 PM
hi you can call me mater

03 cristian's Avatar

Join Date: Jan 2011
Location: Douglas,ga
Posts: 4,845

iTrader: 5 reviews
Re: Toph's All Out Turbo Build

Quote:
Originally Posted by Toph6888 View Post
Well I ordered the rest of my gauges today, should be in in a few days, as well as the lifters for the engine. Everything should be purchased for the engine now except the pushrods, which I will have to measure once it goes together, and other than that just spark plugs. Any body have any suggestions on plugs to run on a turbo, and gap?

---------- Post added at 11:04 AM ---------- Previous post was at 11:02 AM ----------



The turbo is sized pretty small for this engine, and the combination of that, the gearing in the transmission, the gears in the IRS, and with the porting work I did for opening up the exhaust ports on the heads I don't have any concern with this turbo spooling. Its set up for quick spool, not high end power, as this will be a street car/autocross, not drag strip.
Very nice

Chill out, its the internet bro!


"I wonder if I sprayed some on my junk, I could go raw dog and not get herpes. But first I'd have to find a female willing to have relations."-kmac1622
03 cristian is offline
post #13 of 335 Old February 25th, 2013, 01:13 PM
a.k.a. Racecougar

Tang Stang's Avatar

Join Date: Sep 2010
Location: Imperial, MO
Posts: 4,775

iTrader: 3 reviews
Quote:
Originally Posted by 03 cristian View Post
O Hope you know a udp will make the turbo spool up slower

Chill out, its the internet bro!
I'd love to hear your reasoning behind this.

Rod @ AzzKicker Cars

2004 Ford Mustang GT-The Driver-BBK CAI, PP TB & Inlet, Steeda UD's, SLP LM1, & 3.73's.
1990 Mercury Cougar XR7-The Meth Addict-5.0L DOHC Stroker w/2.1L KB SC.
1995 Ford F150-Mud Toy-5.0L, 4x4, 33's, & Warn 8274 Winch
Tang Stang is offline
post #14 of 335 Old February 25th, 2013, 01:36 PM
Enthusiast

05Nlstang's Avatar

Join Date: May 2012
Location: Wisconsin
Posts: 932

iTrader: 0 reviews
^+1

and i never knew that these old v6's are push rod motors kinda surprised me

06 Mustang GT
cams and some other junk
Instagram: @jstacammed3v

Quote:
Originally Posted by crackpotfox View Post
....If a word doesn't exist, make one.
05Nlstang is offline
post #15 of 335 Old February 25th, 2013, 01:55 PM
MOAR BOOST

SlowSix's Avatar

Join Date: May 2010
Location: Pittsburgh, PA
Posts: 9,163

Garage
iTrader: 4 reviews
Quote:
Originally Posted by Tang Stang View Post
I'd love to hear your reasoning behind this.
As would I Lol


Turbo Build Thread
Status: Collecting parts for a stroker motor
SlowSix is offline
post #16 of 335 Old February 25th, 2013, 02:18 PM Thread Starter
Hardcore Enthusiast

Toph6888's Avatar

Join Date: Jan 2008
Location: Ohio
Posts: 1,624

iTrader: 6 reviews
Send a message via AIM to Toph6888
Quote:
Originally Posted by Tang Stang View Post
I'd love to hear your reasoning behind this.
My assumption was that he was assuming since the UDP transfers less energy to the accessories the engine is under less load. But the load just gets transferred to the back wheels where you want it anyways.

Anyways, the only things left to purchase for this build are spark plugs, pushrods, some exhaust tubing, and to finish up my windstar brackets for the windstar intake, besides oil/coolant, etc.

Anyone have any suggestions for plug gap and type to run for the turbo?
Toph6888 is offline
post #17 of 335 Old February 25th, 2013, 03:27 PM
Fee Fie Foe Fum

gaetz1985's Avatar

Join Date: May 2012
Location: Southern Il
Posts: 1,724

iTrader: 5 reviews
I see you"re running a 94 SC block..wouldnt still have that late model blower would you? and i dont really know much about turbo setups but I'd say exhaust powers the turbo, and your rotating assembly supplys the exhaust.. so a pulley on the crank shouldnt make a bit of difference..

World's First M112 Singleport Essex
gaetz1985 is offline
post #18 of 335 Old February 25th, 2013, 03:43 PM Thread Starter
Hardcore Enthusiast

Toph6888's Avatar

Join Date: Jan 2008
Location: Ohio
Posts: 1,624

iTrader: 6 reviews
Send a message via AIM to Toph6888
Quote:
Originally Posted by gaetz1985 View Post
I see you"re running a 94 SC block..wouldnt still have that late model blower would you? and i dont really know much about turbo setups but I'd say exhaust powers the turbo, and your rotating assembly supplys the exhaust.. so a pulley on the crank shouldnt make a bit of difference..
I actually bought just the shortblock, so no blower. Sorry pal.
Toph6888 is offline
post #19 of 335 Old February 25th, 2013, 07:22 PM Thread Starter
Hardcore Enthusiast

Toph6888's Avatar

Join Date: Jan 2008
Location: Ohio
Posts: 1,624

iTrader: 6 reviews
Send a message via AIM to Toph6888
Well I got my bushings today. Prothane kit all around. This is the majority of them. I also got my differential bushings the other day (MM urethane bushings) and the IRS subframe bushings should be here friday.



Toph6888 is offline
post #20 of 335 Old February 25th, 2013, 07:44 PM
MOAR BOOST

SlowSix's Avatar

Join Date: May 2010
Location: Pittsburgh, PA
Posts: 9,163

Garage
iTrader: 4 reviews
IRS bushing are a pain in the ass to put in


Turbo Build Thread
Status: Collecting parts for a stroker motor
SlowSix is offline
Sponsored Links
Advertisement

Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Forums at Modded Mustangs forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page



  LinkBacks (?)
LinkBack to this Thread: https://www.moddedmustangs.com/forums/clubhouse/294354-tophs-all-out-turbo-build.html
Posted By For Type Date
2000 Ford Mustang All Out Turbo Build by Toph6888 This thread Refback August 10th, 2016 06:26 PM

Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
