NSR cam write up.

Here it is guys. This is a write up instaling NSR Comp stage 2 cams in a 2007 Mustang GT. Let me tell you guys somthing right off the bat. If you are not well versed with hand tools and have alot of patience, stop reading now and take your car to a shop. This instal takes patience. I gaurante you will not be doing it in 3 hours! It took me 5 and a half...and I was taking my time so I didint mess anything up. I will be showing pics in here but you will have to read to fully understand what you have to do to do this right. So now for all the wrench heads that are still reading this, lets go.



This is what you will need to do the job. Set of cams, Cam phaser bolts (old ones cant be reused because they are torque stretched) and the two Ford specialty tool. One is a timing chain wedge and the other is a valve spring comppresor. I will gwt into how to use these in a bit. You should also have a torque wrench that reads both foot and inch pounds...and some lube...I used motor oil.


Go ahead and unhook the coil on plugs and the fuel injectors...they are just push clips but be gental..i have broke two so far by switching spark plugs. Once they are unhooked remove the coil on plug, there is one bolt for each. Leave the plugs IN, they dont have to be removed. Once the coils are off remove the cam cover. TIP. Unbolt the oil dipstick, it attaches to the block below the cover. This will make it much easier to remove the cover



Close up of where the dipstick bolts to the block...it is undone in this pic

This is what you should be looking at now.

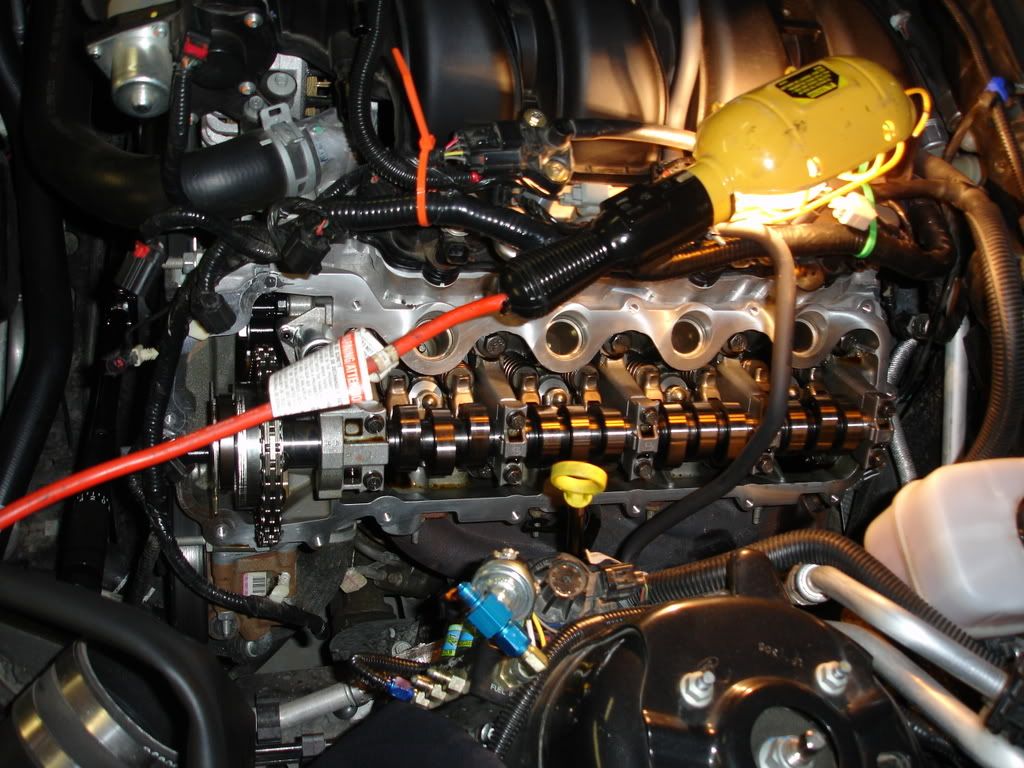

Now it is time to insert the timing chain wedge (yellow thing on a stick) one side is straight and one side is tapered so look at how the timing chain is running...it is opposite depending on what side you are doing...I started with the drivers or LEFT side first. I also marked the chain and sproket with a marker to make sure i was going to be lined up when reinstalling. MAKE SURE THE WEDGE IS IN TIGHT



Look closley and you an see the wedge inbetween the chain...notice how the top of the chain is rounded.


Mark the chain and sproket now before undoing it from the cam

Now go ahead and remove the cam phaser bolt in the front of the cam...be gental...you dont want to roll the engine doing this...it might loosen the wedge. Once that is done simply slide the spocket off the end of the cam and let it sit there on the chain...other installs show removing the sprocket but it is not needed. It can sit there all together and will make reinstalling easier. Once that is done remove the cam journals. I started at the outside and worked my way in untill i was left with the middle one...there will be tension on the bolts all the way off because the cam i under pressure from the springs so be gental her and work back and forth from to pto bottom bolts to remove it evenly. Once that is done it should look like this.



Now simply lift the cam out of its journals.




Now simply pull of the cam follower which just sit there...they look like roller rockers. KEEP THEM IN ORDER. Also the journals are numbered 1 thru 5 with < arrows like that that represent the front of the engine. Keep an eye on them fro re assembly.




Now you lube up the new cam and install it...leave the followers OUT. put the journals back on in proper order with the arrows facing the front of the engine 1 being closest to the front of the engine. Torque the cam journal caps to 89 Inch pounds. Now rotate the cam so the keyway is lined up with the sprocket and slide it on the cam. DO NOT REMOVE THE WEDGE YET. Now go get your new phaser bolt and screw it in and torque it to 30 foot pounds...then turn it 90 degrees more...this stretch torques the bolt and makes it unusable again. Now the motor is going to try and roll while you are torquing the bolt.I just put a ratchet on the crank bolt and held it from rolling while I torques it. I also marked my phaser bolt with a line after i torqued to 30 so i knew where 90 degrees was.



New cam istalled

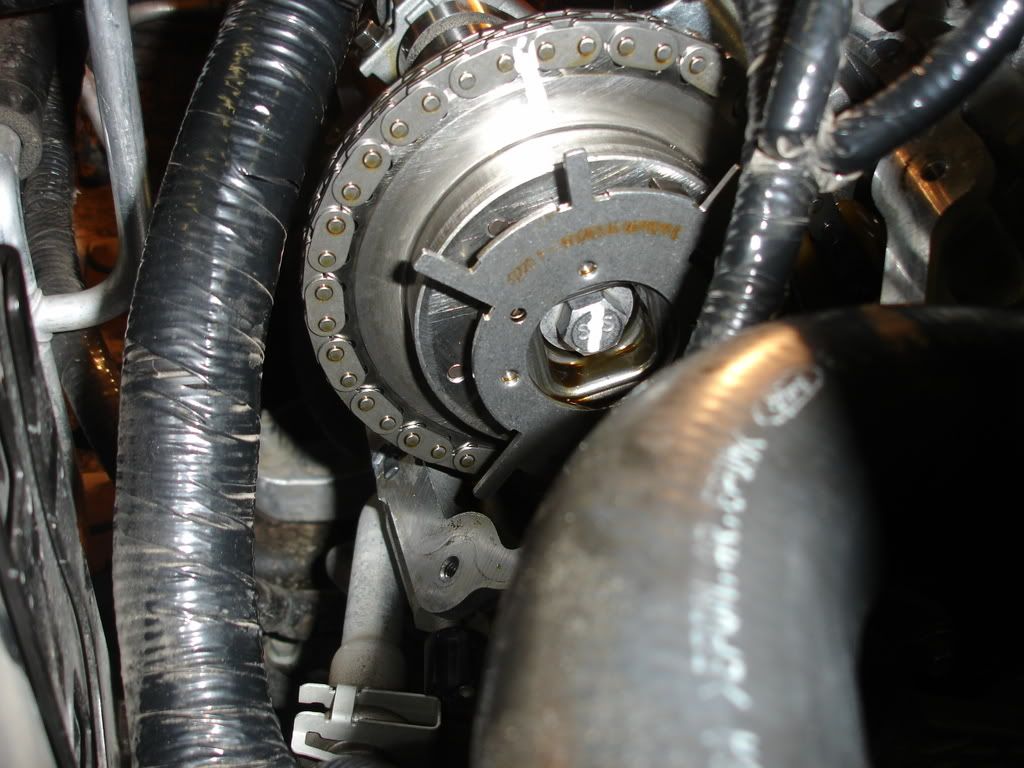

Phaser bolt


Notice the white line facing vertical on the bolt



After I torqued it 90 degrees...your done.

Now remove your wedge from the chain...Pull hard it wont want to come easy!

Refer to page 2 for rest of write up.



The MGW short throw shifter

Its not just a shifter...It's a lifestyle!

Last edited by 07 STROKER; May 26th, 2008 at 12:14 PM.
07 STROKER is offline
Sponsored Links
Advertisement

post #2 of 40 Old May 26th, 2008, 12:24 PM
Enthusiast

menace07's Avatar

Join Date: Sep 2007
Posts: 818

iTrader: 0 reviews
Kick ass write up!

black 07 GT, jlt2 cai, sct2 brenspeed 93 octane tune, UDP's, spydershaft, triax, magnaflow catted x, steeda axleback, bad ass steeda suspension

Stealth GT Twin Turbo System On The Way!!!!!!!

STEEDA SUSPENSION CREW FOUNDER
menace07 is offline
post #3 of 40 Old May 26th, 2008, 12:33 PM
Hardcore Enthusiast

Join Date: Feb 2008
Location: Detroit
Posts: 2,507

iTrader: 1 reviews
You da man!

'08 STi
'02 Supercharged Harley-Davidson F-150 (Sold)
'05 Mustang GT (Sold)
tribaltek is offline
Sponsored Links
Advertisement

post #4 of 40 Old May 26th, 2008, 12:41 PM
Hardcore Enthusiast

Join Date: Feb 2008
Location: Detroit
Posts: 2,507

iTrader: 1 reviews
OK, there is no way I'm doing this myself

'08 STi
'02 Supercharged Harley-Davidson F-150 (Sold)
'05 Mustang GT (Sold)
tribaltek is offline
post #5 of 40 Old May 26th, 2008, 05:07 PM
MM Fanatic

06GTMustang89's Avatar

Join Date: Sep 2007
Location: North Carolina
Posts: 3,164

iTrader: 0 reviews
Send a message via AIM to 06GTMustang89
oh come on thats EASY just patience my man...GOOD FUCKING WRITE UP DUDE!!!!


JLT CAI: KOOKS LT's: Comp NSR II's: 4.56's: TR6060: Steeda LCA, UCA: QA1's: Roush rear springs...see garage for more.
06GTMustang89 is offline
post #6 of 40 Old May 26th, 2008, 05:10 PM
Admanistrator

v606er's Avatar

Join Date: Apr 2008
Posts: 13,320

iTrader: 1 reviews
Send a message via AIM to v606er
now thats good


Quote:
Originally Posted by BWAL View Post
i liked the chilean miners before they went all mainstream. i liked them back when they were still underground.
MAD Stangs #8
v606er is offline
post #7 of 40 Old May 26th, 2008, 05:11 PM
I Post Entirely Way Too Much

usafimj's Avatar

Join Date: Sep 2007
Location: Germany
Posts: 5,102

iTrader: 1 reviews
I've never done anything that extreme and I think I can do it. Just follow the instructions and read it several times and you'll be golden.

hey 07 Pro, why did you install the cam followers after the cam and cam journals were installed. Is it due to the spring tension

11 5.0-- Airaid CAI, Flowmaster mufflers
07 GT-- Gone But Not Forgotten
Military Crew
E-6
usafimj is offline
post #8 of 40 Old May 26th, 2008, 05:26 PM Thread Starter
MM's resident Juice head

07 STROKER's Avatar

Join Date: Nov 2007
Location: PA
Posts: 7,913

iTrader: 0 reviews
yes...if you dont and you mange to get the cam on under tention....you have to line the cam up with the sprocket...which is locked...which means if the cam is off you have to turn it....how do you do that when its under all that tention from the springs...thers no where to put a wrench on them...



The MGW short throw shifter

Its not just a shifter...It's a lifestyle!
07 STROKER is offline
post #9 of 40 Old May 26th, 2008, 05:30 PM
I Post Entirely Way Too Much

usafimj's Avatar

Join Date: Sep 2007
Location: Germany
Posts: 5,102

iTrader: 1 reviews
k cool. thanks for answering my question. I think when I do cams I'll be doing it myself.

I'll ask more questions when the time comes...lol

11 5.0-- Airaid CAI, Flowmaster mufflers
07 GT-- Gone But Not Forgotten
Military Crew
E-6
usafimj is offline
post #10 of 40 Old May 26th, 2008, 05:31 PM Thread Starter
MM's resident Juice head

07 STROKER's Avatar

Join Date: Nov 2007
Location: PA
Posts: 7,913

iTrader: 0 reviews
my number is at the bottom of page 2 call me if you need to!



The MGW short throw shifter

Its not just a shifter...It's a lifestyle!
07 STROKER is offline
post #11 of 40 Old May 26th, 2008, 05:32 PM
I Post Entirely Way Too Much

usafimj's Avatar

Join Date: Sep 2007
Location: Germany
Posts: 5,102

iTrader: 1 reviews
Thanks. It might not be til later on this yr.

Have the roads dried up. Have you gotten on it yet

11 5.0-- Airaid CAI, Flowmaster mufflers
07 GT-- Gone But Not Forgotten
Military Crew
E-6
usafimj is offline
post #12 of 40 Old May 26th, 2008, 05:37 PM Thread Starter
MM's resident Juice head

07 STROKER's Avatar

Join Date: Nov 2007
Location: PA
Posts: 7,913

iTrader: 0 reviews
i took it out the store yesterday ...it stoped raining but the roads were wet.....shes got stank!! Im at work now so i cant give it a good romp till friday now



The MGW short throw shifter

Its not just a shifter...It's a lifestyle!
07 STROKER is offline
post #13 of 40 Old May 26th, 2008, 05:39 PM
I Post Entirely Way Too Much

usafimj's Avatar

Join Date: Sep 2007
Location: Germany
Posts: 5,102

iTrader: 1 reviews
I feel your pain. I haven't driven my stang since May 3rd

11 5.0-- Airaid CAI, Flowmaster mufflers
07 GT-- Gone But Not Forgotten
Military Crew
E-6
usafimj is offline
post #14 of 40 Old May 26th, 2008, 05:43 PM Thread Starter
MM's resident Juice head

07 STROKER's Avatar

Join Date: Nov 2007
Location: PA
Posts: 7,913

iTrader: 0 reviews
ya im just rollin on 15 000 km in two years...well this will be its second summer.



The MGW short throw shifter

Its not just a shifter...It's a lifestyle!
07 STROKER is offline
post #15 of 40 Old May 26th, 2008, 05:50 PM
Administrator

BWAL's Avatar

Join Date: Nov 2006
Location: Clothes Hamper
Posts: 33,186
Blog Entries: 2

iTrader: 4 reviews
awesome write up man.. +rep

'65 Fastback
'89 LX 5.0
'90 LX 5.0
'92 LX 5.0
'92 LX 5.0
'97 Cobra

BWAL is offline
post #16 of 40 Old May 26th, 2008, 05:58 PM
Admanistrator

v606er's Avatar

Join Date: Apr 2008
Posts: 13,320

iTrader: 1 reviews
Send a message via AIM to v606er
good write up


Quote:
Originally Posted by BWAL View Post
i liked the chilean miners before they went all mainstream. i liked them back when they were still underground.
MAD Stangs #8
v606er is offline
post #17 of 40 Old May 26th, 2008, 06:03 PM
IBEATU

stanglifemike's Avatar

Join Date: Dec 2006
Location: Douglasville, GA
Posts: 5,919

iTrader: 0 reviews
Nice man!! thanks for the write-up


98 GT: some stuff
06 GT: more stuff
93 Notch: 4 cyl at birth, now 5.0 drivetrain and stock exterior and interior= True Sleeper
Paxton/Vortech Crew Member #3

FRPP's #1 Dealer
Injected Engineering
BMR Suspension
stanglifemike is offline
post #18 of 40 Old May 26th, 2008, 06:20 PM Thread Starter
MM's resident Juice head

07 STROKER's Avatar

Join Date: Nov 2007
Location: PA
Posts: 7,913

iTrader: 0 reviews
no worries



The MGW short throw shifter

Its not just a shifter...It's a lifestyle!
07 STROKER is offline
post #19 of 40 Old May 26th, 2008, 06:20 PM
The Despised Vert

Join Date: Aug 2007
Location: KC
Posts: 3,557

iTrader: 0 reviews
Send a message via Yahoo to 2006greyGT
I guess I am stupid... I read it twice and didn't see where you put the followers back in.. looks like they were in before you installed the phaser bolt????



KB 2.6l 4.9l forged stroker 2 1/2" Exhaust Cloth Top

NUMBER 3 Official member of the "My Car Sucks And No One Likes It But Me" CLUB
2006greyGT is offline
post #20 of 40 Old May 26th, 2008, 06:21 PM Thread Starter
MM's resident Juice head

07 STROKER's Avatar

Join Date: Nov 2007
Location: PA
Posts: 7,913

iTrader: 0 reviews
i didint grab any pics of that...but i wrote it up on page 2



The MGW short throw shifter

Its not just a shifter...It's a lifestyle!
07 STROKER is offline
