Split port swap Fuel rail

Looks like I'll be sticking with the V6 just a bit longer, so I want to split port swap it for the time being, I get the idea on it and the majority of the parts but from the research I have done I'm not finding a definitive awnser for the fuel rail since the split port mustangs are returnless style. I have seen that an E-150/F-150 rail would work but I would have to run an intake spacer which i dont want to do that. does anyone have any pics of a returnless fuel rail modifed to use with the swap? Or know a better stock like rail.

Current: (Green) 96' 5-speed GT
Previous: (Silver) 96' 5-speed S/C'd V6 Stang
xLeGeNDx is offline
Sponsored Links
Advertisement

post #2 of 25 Old August 6th, 2013, 11:06 AM
a.k.a. Racecougar

Tang Stang's Avatar

Join Date: Sep 2010
Location: Imperial, MO
Posts: 4,775

iTrader: 3 reviews

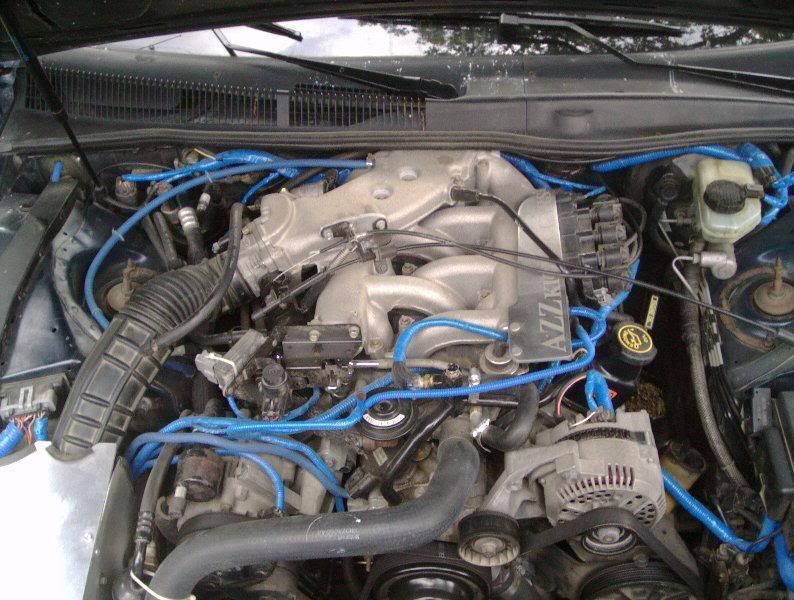

When I did this swap into my '94 Tbird back in 2002, I used a E-150 rail without an intake spacer. The driverside main "log" on the intake manifold had to be trimmed and TIG'd to clear the FPR, the passenger side main "log" received a little clearancing for the feed/return ports, and I had to make a couple of brackets to match up to the rails holddowns. I only have a few pictures from that swap.




Rod @ AzzKicker Cars

2004 Ford Mustang GT-The Driver-BBK CAI, PP TB & Inlet, Steeda UD's, SLP LM1, & 3.73's.
1990 Mercury Cougar XR7-The Meth Addict-5.0L DOHC Stroker w/2.1L KB SC.
1995 Ford F150-Mud Toy-5.0L, 4x4, 33's, & Warn 8274 Winch
Tang Stang is offline
post #3 of 25 Old August 6th, 2013, 11:43 AM
Fee Fie Foe Fum

gaetz1985's Avatar

Join Date: May 2012
Location: Southern Il
Posts: 1,724

iTrader: 5 reviews
What is the reasoning for not wanting to use an intake spacer? Lol just use the damn spacer and then no hacking the E rail.. Poof.. Done...

I am in need of a single port intake btw

And Rods rwd heads... Just have to buckle down and make the drive..

World's First M112 Singleport Essex
gaetz1985 is offline
Sponsored Links
Advertisement

post #4 of 25 Old August 6th, 2013, 11:51 AM
a.k.a. Racecougar

Tang Stang's Avatar

Join Date: Sep 2010
Location: Imperial, MO
Posts: 4,775

iTrader: 3 reviews
Quote:
Originally Posted by gaetz1985 View Post
What is the reasoning for not wanting to use an intake spacer? Lol just use the damn spacer and then no hacking the E rail.. Poof.. Done...

I am in need of a single port intake btw

And Rods rwd heads... Just have to buckle down and make the drive..
In my case, hood clearance. I don't know that a spacer existed back then anyway.

I have a 89-98 3.8L NA upper intake manifold here, if that's what you need.

Rod @ AzzKicker Cars

2004 Ford Mustang GT-The Driver-BBK CAI, PP TB & Inlet, Steeda UD's, SLP LM1, & 3.73's.
1990 Mercury Cougar XR7-The Meth Addict-5.0L DOHC Stroker w/2.1L KB SC.
1995 Ford F150-Mud Toy-5.0L, 4x4, 33's, & Warn 8274 Winch
Tang Stang is offline
post #5 of 25 Old August 6th, 2013, 11:59 AM
Fee Fie Foe Fum

gaetz1985's Avatar

Join Date: May 2012
Location: Southern Il
Posts: 1,724

iTrader: 5 reviews
Sorry Rod, my question was aimed at the OP.. I know those tbird hoods ride close anyway... I just need a lower n/a intake.. Have a little project I am wanting to do on one..

I also need to find someone within driving distance that is set up for heli-arc that'll take care of me on some alum welding I can't do myself.. My lil' ol MIG isnt up to the task...

World's First M112 Singleport Essex
gaetz1985 is offline
post #6 of 25 Old August 6th, 2013, 12:54 PM Thread Starter
Defective Product

xLeGeNDx's Avatar

Join Date: Jan 2013
Location: East Tennessee
Posts: 898

Garage
iTrader: 0 reviews
I could go with a spacer but with the intake setup, would it clear the strut bar? Also got a link to where I can get the spacer? Also what year E-150 should I look for? When I was at the yard yesterday the had at least a dozen E-150s sitting out there

Swyped from my HTC One X AutoGuide.com Free App

Current: (Green) 96' 5-speed GT
Previous: (Silver) 96' 5-speed S/C'd V6 Stang
xLeGeNDx is offline
post #7 of 25 Old August 6th, 2013, 01:17 PM
Fee Fie Foe Fum

gaetz1985's Avatar

Join Date: May 2012
Location: Southern Il
Posts: 1,724

iTrader: 5 reviews
Ive seen a strut bar on a windstar swapped car so probably.. Not sure about the year of the E but I would stick to when they made the split port setup..99 or newer..

World's First M112 Singleport Essex
gaetz1985 is offline
post #8 of 25 Old August 6th, 2013, 01:48 PM
a.k.a. Racecougar

Tang Stang's Avatar

Join Date: Sep 2010
Location: Imperial, MO
Posts: 4,775

iTrader: 3 reviews
IIRC, the Splitport 4.2L arrived in '97 in the E-150's.

Rod @ AzzKicker Cars

2004 Ford Mustang GT-The Driver-BBK CAI, PP TB & Inlet, Steeda UD's, SLP LM1, & 3.73's.
1990 Mercury Cougar XR7-The Meth Addict-5.0L DOHC Stroker w/2.1L KB SC.
1995 Ford F150-Mud Toy-5.0L, 4x4, 33's, & Warn 8274 Winch
Tang Stang is offline
post #9 of 25 Old August 6th, 2013, 07:02 PM Thread Starter
Defective Product

xLeGeNDx's Avatar

Join Date: Jan 2013
Location: East Tennessee
Posts: 898

Garage
iTrader: 0 reviews
I plan on going tomorrow and start gathering stuff up, hopefully they get a couple more New Edges in, when I went monday they only had 1 NE and it was an 02' as for the E-150 i dont remember what years they ranged.

Current: (Green) 96' 5-speed GT
Previous: (Silver) 96' 5-speed S/C'd V6 Stang
xLeGeNDx is offline
post #10 of 25 Old August 6th, 2013, 08:49 PM
Enthusiast

Join Date: Jul 2012
Posts: 658

iTrader: 5 reviews
Quote:
Originally Posted by gaetz1985 View Post
Ive seen a strut bar on a windstar swapped car so probably....
barely clears. check the sig pic.


M112 IN 2016
LT's on 2.5" MAC, 3.73 trac loc, M112
PARTS FOR SALE MAKE OFFERS - PM PLEASE
warthogdriver is offline
post #11 of 25 Old August 6th, 2013, 09:19 PM
Efficiency is Performance

izzy1111's Avatar

Join Date: Apr 2012
Location: Houston, TX
Posts: 1,214

Garage
iTrader: 0 reviews
I used the same fuel rail from the windstar van I took the intake from. But you will need to extend your fuel lines to reach the drivers side. You will have hood clearance problems if you use the intake spacer.

'95 4.2L V6 Mustang 5-speed
'13 Fusion
izzy1111 is offline
post #12 of 25 Old August 7th, 2013, 07:44 AM Thread Starter
Defective Product

xLeGeNDx's Avatar

Join Date: Jan 2013
Location: East Tennessee
Posts: 898

Garage
iTrader: 0 reviews
I'd prefer not having to deal with hood clearance issues in all honestly, with the trans going out funds are gonna be tight enough as it is without having to buy a new hood

Current: (Green) 96' 5-speed GT
Previous: (Silver) 96' 5-speed S/C'd V6 Stang
xLeGeNDx is offline
post #13 of 25 Old August 7th, 2013, 08:56 AM
Enthusiast

Join Date: Jul 2012
Posts: 658

iTrader: 5 reviews

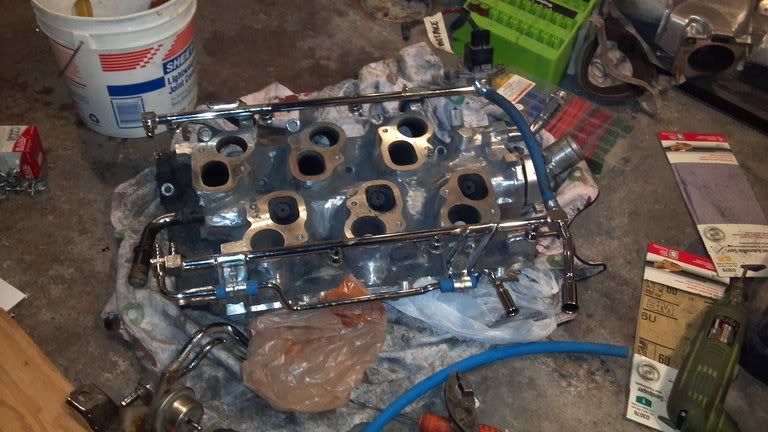

i reused my fuel rail. just had to mod it a little.
the how to i based it off of

http://www.tccoa.com/articles/mn12ho...fuel-rail.html



the two short segments of fuel line on the pass side is just an isolator in the clamps i made up to hold it in place.

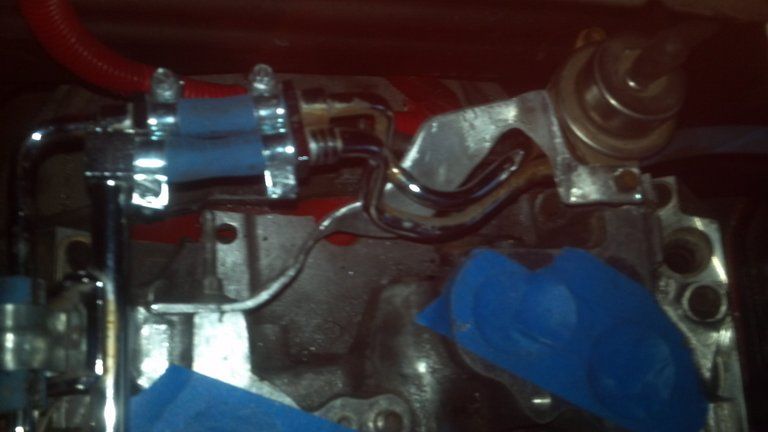

the rear of the engine was a little more involved


M112 IN 2016
LT's on 2.5" MAC, 3.73 trac loc, M112
PARTS FOR SALE MAKE OFFERS - PM PLEASE
warthogdriver is offline
post #14 of 25 Old August 7th, 2013, 09:22 AM Thread Starter
Defective Product

xLeGeNDx's Avatar

Join Date: Jan 2013
Location: East Tennessee
Posts: 898

Garage
iTrader: 0 reviews
Interesting, i been hunting for ages trying to find pics of a modified rail, would any autoparts store carry the proper hosing for the job? and also what size line did you use?

Current: (Green) 96' 5-speed GT
Previous: (Silver) 96' 5-speed S/C'd V6 Stang
xLeGeNDx is offline
post #15 of 25 Old August 7th, 2013, 09:43 AM
Enthusiast

Join Date: Jul 2012
Posts: 658

iTrader: 5 reviews
i used what the how to specified. i had to go to a local hydraulic shop for the hose.
there may be other places...autozone didnt have it though.
the how to said you didnt need the clamps but i used them any ways.


M112 IN 2016
LT's on 2.5" MAC, 3.73 trac loc, M112
PARTS FOR SALE MAKE OFFERS - PM PLEASE
warthogdriver is offline
post #16 of 25 Old August 7th, 2013, 10:07 AM Thread Starter
Defective Product

xLeGeNDx's Avatar

Join Date: Jan 2013
Location: East Tennessee
Posts: 898

Garage
iTrader: 0 reviews
Thats bad news then, theres no actual hydraulic stores around here, o'reilly autoparts here messes with hydraulic lines. I got one more question, in the pic where you can see the barbs for the double line is that connected right there? or is it just the clamps holding the out line up against it?

I think i see what you did there, Removed the out line from the single port rail, ran a new line joining the fronts of the pass/driver sides of the split port rail setup together, used the single port FPR and tied it into the 2 lines on the pass side, and connected the single line on the FPR to the driver side rail.

Current: (Green) 96' 5-speed GT
Previous: (Silver) 96' 5-speed S/C'd V6 Stang
xLeGeNDx is offline
post #17 of 25 Old August 7th, 2013, 10:34 AM
Enthusiast

Join Date: Jul 2012
Posts: 658

iTrader: 5 reviews
the rail is all from the single port. i used a drummel to cut the return bracket to relocate it backwards.

this pic should help you see what i did
Attached Thumbnails
Click image for larger version

Name:	fuel rail copy.jpg
Views:	1043
Size:	79.7 KB
ID:	41594


M112 IN 2016
LT's on 2.5" MAC, 3.73 trac loc, M112
PARTS FOR SALE MAKE OFFERS - PM PLEASE
warthogdriver is offline
post #18 of 25 Old August 7th, 2013, 10:39 AM Thread Starter
Defective Product

xLeGeNDx's Avatar

Join Date: Jan 2013
Location: East Tennessee
Posts: 898

Garage
iTrader: 0 reviews
Gotcha, I think theres a tad bit of confusion. I'm just doing the split port intakes and not tossing on the windstar, My single port rail looks different, Its got 2 injectors side by side on the pass side of it, where yours are spaced out.

Current: (Green) 96' 5-speed GT
Previous: (Silver) 96' 5-speed S/C'd V6 Stang
xLeGeNDx is offline
post #19 of 25 Old August 7th, 2013, 10:43 AM
Enthusiast

Join Date: Jul 2012
Posts: 658

iTrader: 5 reviews
i think this still applies.
the windstar was an after thought. this should work for just the split port swap as well.


M112 IN 2016
LT's on 2.5" MAC, 3.73 trac loc, M112
PARTS FOR SALE MAKE OFFERS - PM PLEASE
warthogdriver is offline
post #20 of 25 Old August 7th, 2013, 10:51 AM Thread Starter
Defective Product

xLeGeNDx's Avatar

Join Date: Jan 2013
Location: East Tennessee
Posts: 898

Garage
iTrader: 0 reviews
I'm thinking so, at least in my mind it makes sense anyways.
